THM

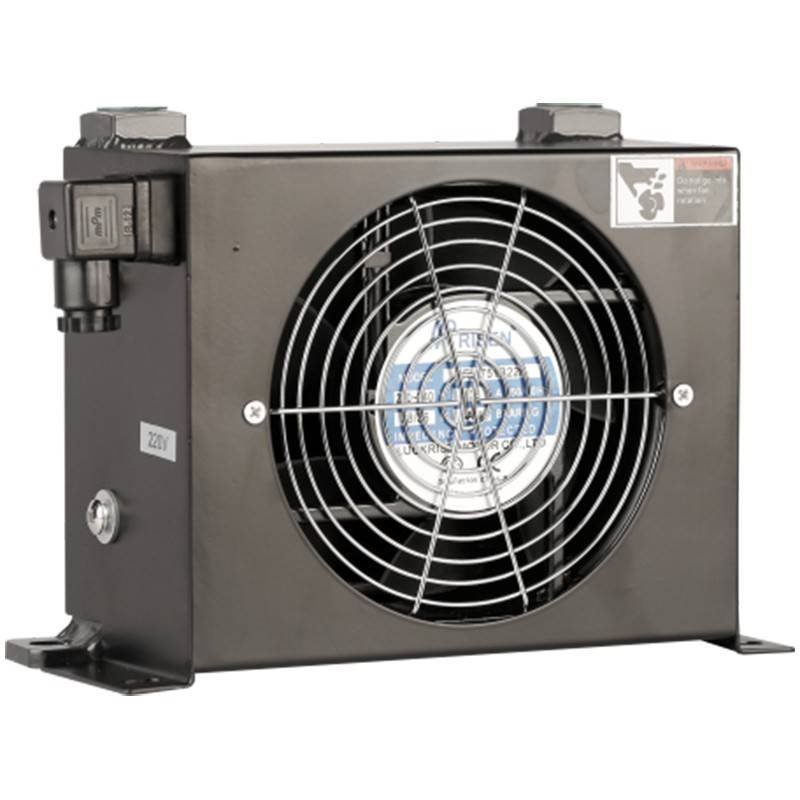

THM – AW Series – Air Oil Coolers
THM AW Series Air Oil Coolers maintain optimal hydraulic system temperatures. They feature axial flow fans and high heat dissipation fins.
Download product brochureSpecifications
| Brand | THM |
|---|---|
| Category | Air Oil Coolers |
| Size | 607608L |
| Model | AW0607-FMA2-10AW0607-FMD2-10 |
Variations
- Size: 607, Model: aw0607-fma2-10
- Size: 607, Model: aw0607-fmd2-10
Overview
AW Series – Enhance your hydraulic system’s efficiency with our reliable Air Oil Coolers, designed to maintain optimal temperatures and performance. Shop now.
Applications :
- Applicable for cooling for the oil drain pipe of variable vane and piston pumps and small hydraulic power packs.
- Very suitable for machine tools, special purpose machine tools and small power packs.
Key highlights
- Assembled with high performance axial flow electric fan
- Tightly structured high heat dissipation type fins
- Single-fan and double-fan cooling options
- Standard ports with PT and BSP screw threads
- Operating voltages: DC12v, DC24v, AC110v, AC220v
- Sizes: 607, 608L; Models: AW0607-FMA2-10, AW0607-FMD2-10
Typical applications
- Cooling for oil drain pipe of variable vane and piston pumps
- Small hydraulic power packs
- Machine tools
- Special purpose machine tools
Product details
Applications :
- Applicable for cooling for the oil drain pipe of variable vane and piston pumps and small hydraulic power packs.
- Very suitable for machine tools, special purpose machine tools and small power packs.
Characteristics :
- The cooler is assembled with a high performance axial flow electric fan with tightly structured high heat dissipation type fins.
- Single-fan and Double-fan cooling is available according to the heat generated in a hydraulic system.
- Standard ports for inlet and outlet are available with PT and BSP screw threads.
- Operating voltages available are DC12v,DC24v,AC110v,AC220v.
