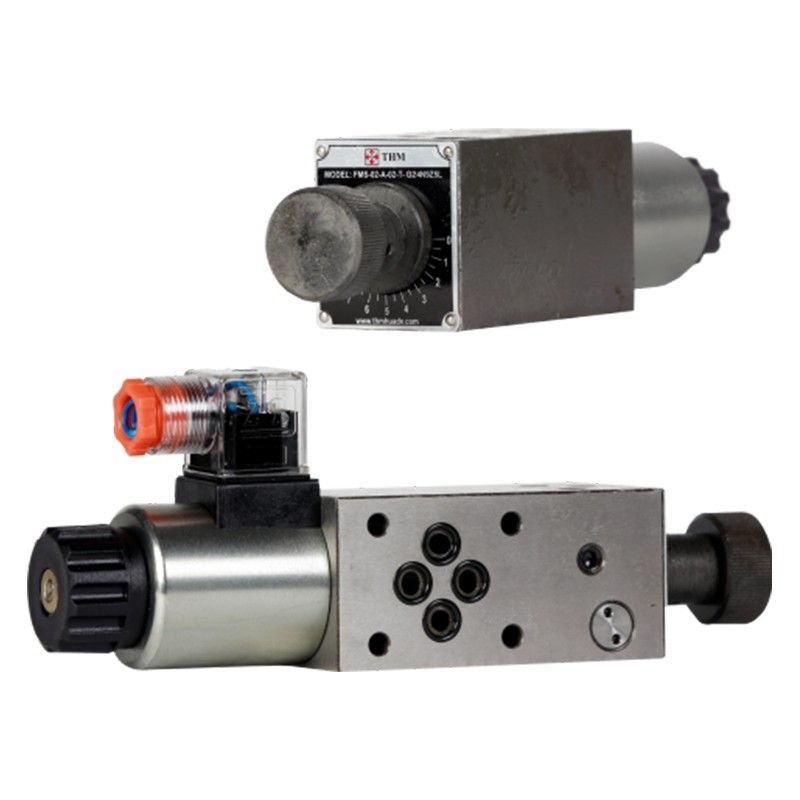

THM-FMS Modular Solenoid Flow Control Valve
The THM-FMS Modular Solenoid Flow Control Valve provides flow up to 1, 2, 4, or 8 l/min depending on the model. It is a modular unit combining a by-pass solenoid valve and a 2-way pressure compensated flow control valve, with flow adjustment via a graduated micrometer knob.
Download product brochureSpecifications
| Brand | THM |
|---|---|
| Category | Flow Control Valves |
| Size | 02 |
| Model | FMS-G02T/220VFMS-G02T/24V |
Overview
flow up to 1, 2, 4, 8 l/min (depending on models).
FMS Solenoid & modular type for rapid-feed applications.
Key highlights
- Flow up to 1, 2, 4, 8 l/min (depending on models)
- FMS Solenoid & modular type for rapid-feed applications
- FMS-02 = ISO 4401 size 06 interface
- Flow adjustment by turning graduated micrometer knob
- Clockwise rotation decreases throttling
- For hydraulic mineral oil or synthetic fluid
Typical applications
- Hydraulic systems
- Rapid-feed applications
Product details
Characteristics :
- FMS-02 is a modular units composed by-oneby- pass solenoid valve and one 2-way pressure compensated flow control valve type.
- The flow adjustment is obtained by turning the graduated micrometer knob.
- Clockwise rotation decreases the throttling (passage reduced).
- FMS-02 = ISO 4401 size 06 interface; Controlled.
- Valves designed to operate in hydraulic systems with hydraulic mineral oil or synthetic fluid having similar lubricating characteristics.
