PV092
THM

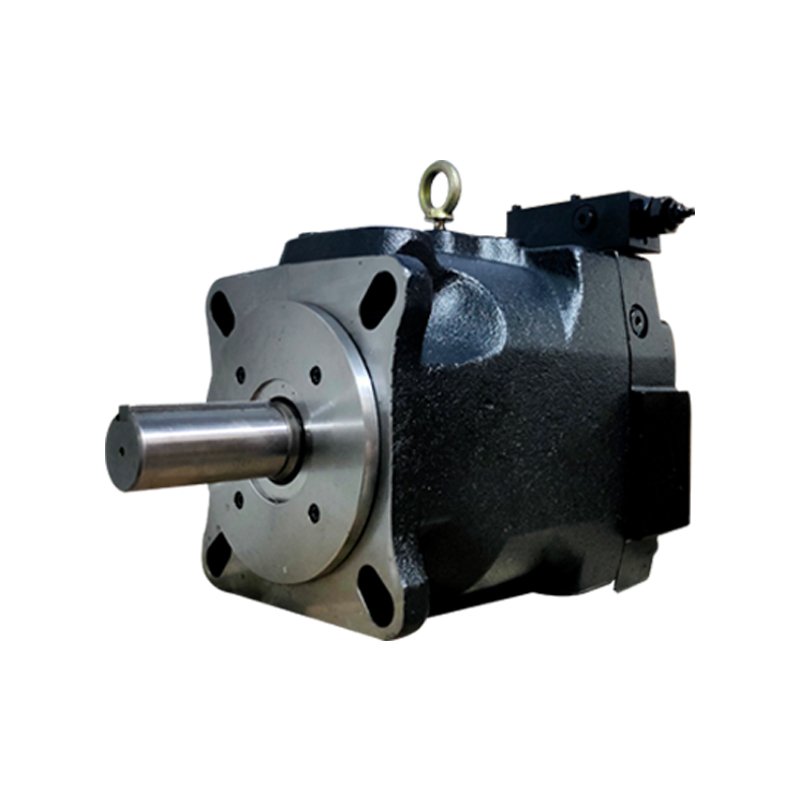

THM – PV – Variable Displacement Piston pump

The THM PV is a variable displacement piston pump with a displacement range of 16 to 270 cc/rev. It delivers a nominal pressure of 350 bar and a maximum pressure of 420 bar.

Enquire now WhatsApp Call
Download product brochure
PumpsPV - Variable Displacement Piston pump

Specifications

BrandTHM
CategoryOpen Loop
Size11012514016180202102327028324046566365718092
ModelPV092-PAIRM1A0PV110-PHIRM1A0N

Overview

  • Displacement : 16 ~270 cc/rev
  • Nominal Pressure : 350 Bar
  • Maximum pressure : 420 Bar

Key highlights

  1. Displacement: 16 to 270 cc/rev
  2. Nominal pressure: 350 bar
  3. Maximum pressure: 420 bar
  4. Nine pistons and new pre-compression technology
  5. Complete compensator program offers multiple controls
  6. Thru-drive for 100% nominal torque

Typical applications

  • Automobile industrial
  • Ships
  • Forging machines
  • Tire machines

Product details

THM – PV – Variable Displacement Piston pump

  1. New type of swash plate and large servo piston with strong bias spring achieves fast response, reduce the noise due to active
    decompression of system at down stroke.
  2. Nine pistons and new pre-compression technology (pre-compression filter volume) result in unbeaten low outlet flow
    pulsation.
  3. Complete compensator program offers multiple controls.
  4. Rigid and FEM-optimized body design for lowest noise level.
  5. Thru-drive for 100% nominal torque.
  6. Pump combination (multiple pumps) of same size and model and mounting interface for basically all metric or SAE mounting
    interfaces.
  7. Wide application in automobile industrial, ships, forging machines, tire machines, injection moulding machine, machine tools,
    special-purpose machine.
