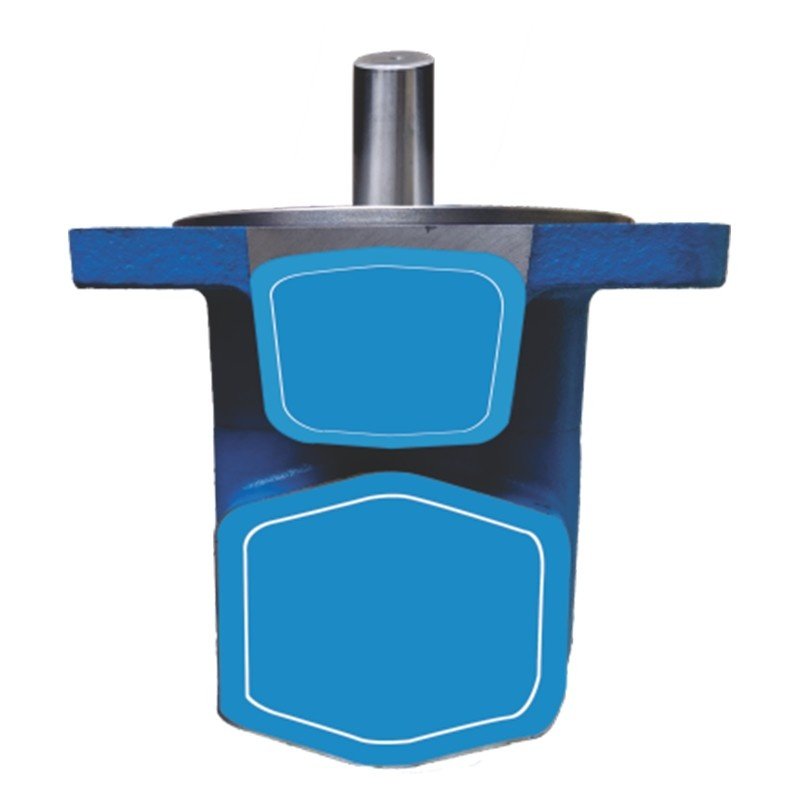

THM – PV2R5 – Fixed Displacement Vane Pump (Large Flow)
The THM PV2R5 is a fixed displacement vane pump designed for medium pressure applications. It delivers high volumetric efficiency and reliable, long-life performance.
Download product brochureSpecifications
| Brand | THM |
|---|---|
| Category | Fixed Vane Pumps |
| Size | 230270320350 |
| Model | PV2R5-270-A-F1C-22RPV2R5-320-A-F1C-22RPV2R5-350-A-F1C-22R |
Overview
Get optimal performance with THM – PV2R5 Fixed Displacement Vane Pump, engineered for durability and efficiency by Thm Huade Hydraulics.
- Max pressure: 120 bar.
- 4 sizes : 230, 272, 320, 348 cc/rev
Key highlights
- Maximum operating pressure up to 120 bar
- High volumetric efficiency up to 92% @120bar
- Twelve vane design for quiet operation
- Cartridge design
- Four flow options: 230, 272, 320, 348 cc/rev
Product details
Features:
- PV2R5- Series are high performance vane pump with long life for medium pressure application.
- High volumetric efficiency upto 92% @120bar.
- Maximum operating pressure up to 120bar.
- Twelve Vane Design for quite operation.
- Versatile, rugged and optimized design.
- Compact.
- Four flow option.
- Cartridge design.
