STF – STFC Series – Radial Piston Motors
The STFC series radial piston motor uses hydrostatic balance technology for higher casing intensity and carrying capacity. It offers max pressure up to 290 bar and rated torque from 3324 to 22404 N.m.
Download product brochureSpecifications
| Brand | STF |
|---|---|
| Category | Radial Piston Motors |
Overview
STFC series hydraulic motor is the achievement of our year’s experience of hydrostatic balance technology. It feature with higher intensity of casing and larger carrying capacity of internal dynamic components. Reduced internal friction, heat, and all negative effects are realize by hydrostatic balance technology.
- STFC series-080,100,125,200,270,325,400
- Max. Pressure up to 290 bar
- Rated Torque range 3324 to 22404 N.m
Key highlights
- Max pressure up to 290 bar
- Rated torque range 3324 to 22404 N.m
- Sizes 080, 100, 125, 200, 270, 325, 400
- Mechanical efficiency while starting up to 90%
- Hydrostatic balance shaft distributor prevents tilting
- Ideal replacement of STAFFA motor with interchangeable mounting
Typical applications
- Plastic injection molding machines
- Deck machinery, construction machinery
- Hoist, transport vehicle
- Heavy metallurgical, petroleum & mining machinery
Product details

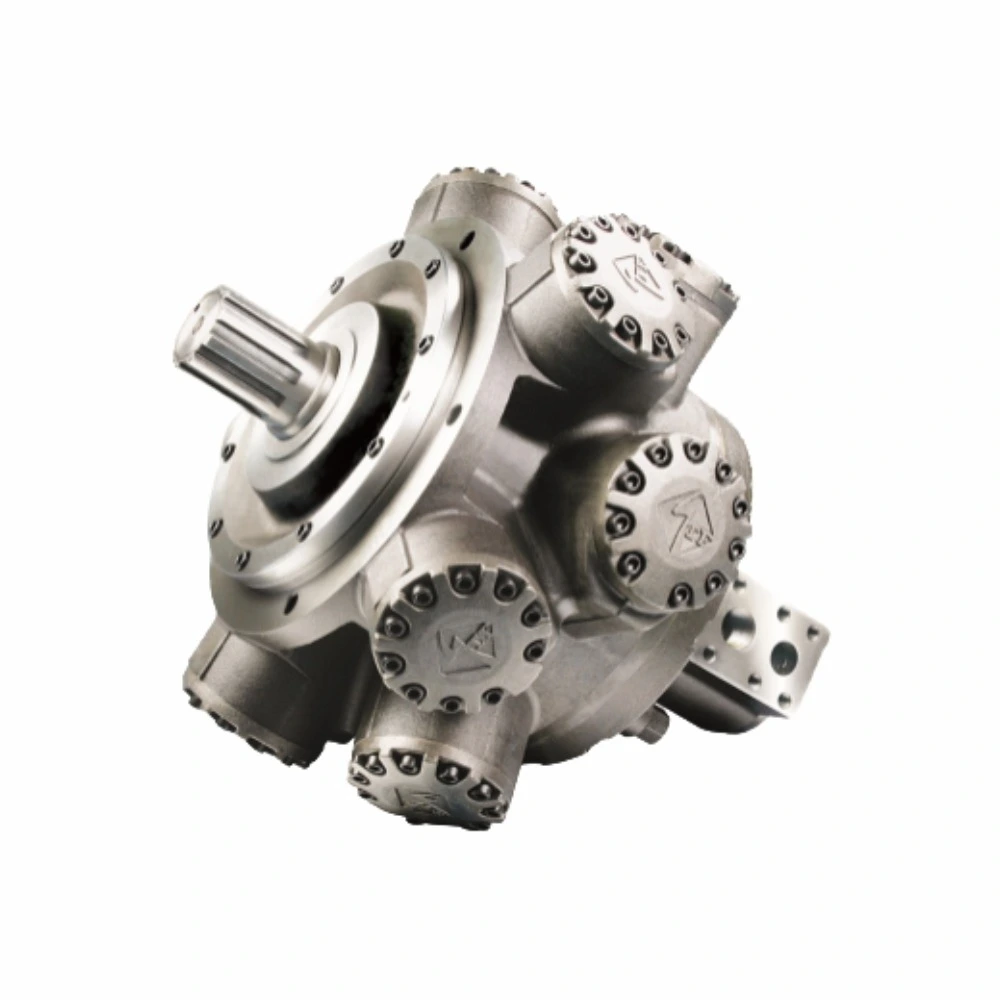

STF – STFC Series – Radial Piston Motor
Main Chratcteristics of STFC Series
- The hydrostatic balance built between the piston, con-rod and eccentric sets reduces the friction between con rod and eccentric sets, and also reduce the lateral friction on pistons, and contact pressure on ball the socket, thus to reduce the friction loss while on load. With above STFC series motor features with high mechanical efficiency and starting torque (The Mechanical efficiency while starring is upto 90%)
- Hydrostatic balance shaft distributor prevent the shaft from tilting. thus to get excellent sealing, less leakage, and continuous running under high pressure (Max. pressure reach to 29Mpa)
- Special materials and structure of seals reduce the leakage and improve the volumetric efficiency.
- Special materials and advanced treatment on main driving parts prolong the overall service life.
- Ideal replacement of STAFFA motor with interchangeable mounting and performance.
STFC series motor is widely applied in all kinds of hydraulic transmission systems. such as plastic injection molding machines, deck machinery, construction machinery, hoist, transport vehicle, heavy metallurgical machinery, petroleum & mining machinery, light industrial equipment, drilling machinery and so on.
