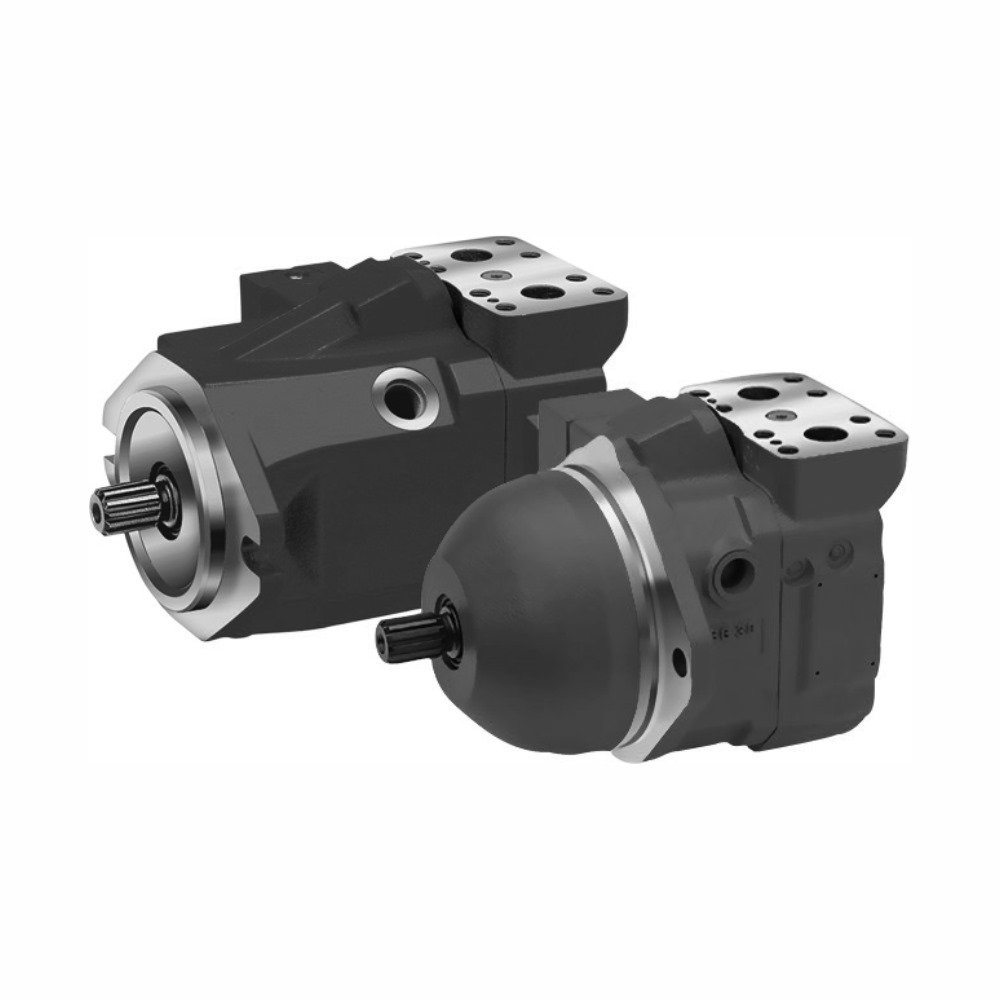

TS-A10VE & TS-A10VM
1 / 2
THM

THM – A10VE & A10VM – Axial Piston Motor

The THM A10VE and A10VM are axial piston motors for open and closed circuits. Series 52 sizes range from 28 to 85 cc/rev with nominal pressure 280 bar and maximum pressure 350 bar.

Enquire now WhatsApp Call
Download product brochure
A10VEA10VMAxial piston motor

Specifications

BrandTHM
CategoryAxial Piston Pumps
ModelA10VM45DG/52W1-VRC60N00A10VM45DG/52W1-VWC10N00A10VM45DG/52W2-VRC60N00-TBA10VM45DG/52W2-VRC60N000-S01A10VM65-39-020

Overview

  • THM-A10VM – Axial piston variable motor
  • THM-A10VE – Axial piston plug-in motor
  • Series: 52
  • Displacement Sizes: 28 to 85 cc/rev
  • Nominal Pressure: 280 bar
  • Maximum Pressure: 350 bar
  • Circuit Types: Open and Closed Circuits

Key highlights

  1. Series 52
  2. Displacement sizes: 28 to 85 cc/rev
  3. Nominal pressure: 280 bar
  4. Maximum pressure: 350 bar
  5. Open and closed circuits
  6. Variable displacement, swashplate design

Typical applications

  • Open circuits
  • Closed circuits

Product details

THM – A10VE & A10VM – Axial Piston Motor

The THM A10VE and A10VM are a high performance series of axial piston motors, that are precise, powerful and efficient to meet the requirements of the most demanding hydraulic systems. These medium-pressure motors are designed on the established A10 rotary group technology and provide smooth variable speed and torque control, both open and closed circuit.

  • THM-A10VM – Axial piston variable motor
  • THM-A10VE – Axial piston plug-in motor
  • Series: 52
  • Displacement Sizes: 28 to 85 cc/rev
  • Nominal Pressure: 280 bar
  • Maximum Pressure: 350 bar
  • Circuit Types: Open and Closed Circuits

Features

  • Variable displacement motor with well-tried A10-rotary unit technology
  • Approved for high rotational speeds
  • Long service life
  • High power density
  • Low noise
  • Minimum swivel angle can be adjusted externally
  • Swashplate design
