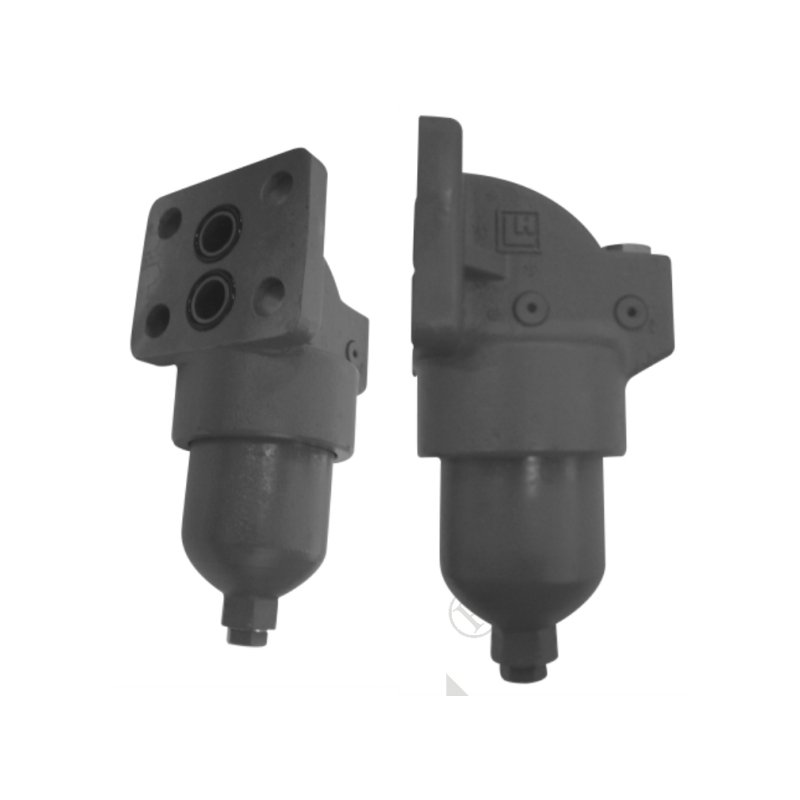

THM – DFB Series – Hydraulic Filter
DFB series hydraulic filter is a high pressure type used in the pressure line of hydraulic systems. It removes contaminants with a glass fibre element.
Download product brochureSpecifications
| Brand | THM |
|---|---|
| Category | Hydraulic FIlter |
| Model | THM DFBNK160QE10LZ1.0/-1GS-B9-OAITHM DFBNK256QE10LZ1.0/-1GS-B9-OAI |
Overview
Pressure Line Filter
Max. pressure: 320 bar
Max. Flow: 30 to 660 l/min
Key highlights
- Max. pressure: 320 bar
- Max. Flow: 30 to 660 l/min
- Glass fibre element
- Beta ratio over 200
- By-pass valve and contamination indicator
Typical applications
- Pressure line of hydraulic system
Product details
Introduction:
DFB series filter is of high pressure type, and used in the pressure line of hydraulic system. It can remove all the contaminants from the hydraulic system. The element of this series is made of glass fibre. it has high efficiency and filtration, large dirt capacity and low initial pressure drop. Beta ratio is over 200.
It has two protection equipment which are by-pass valve and contamination indicator. The indicator will act when the pressure drop across element attains adjustable pressure. The element should be cleaned or changed in time.
