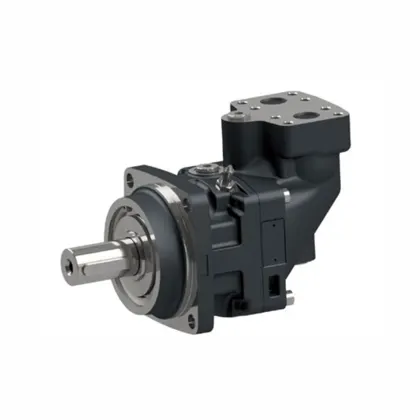

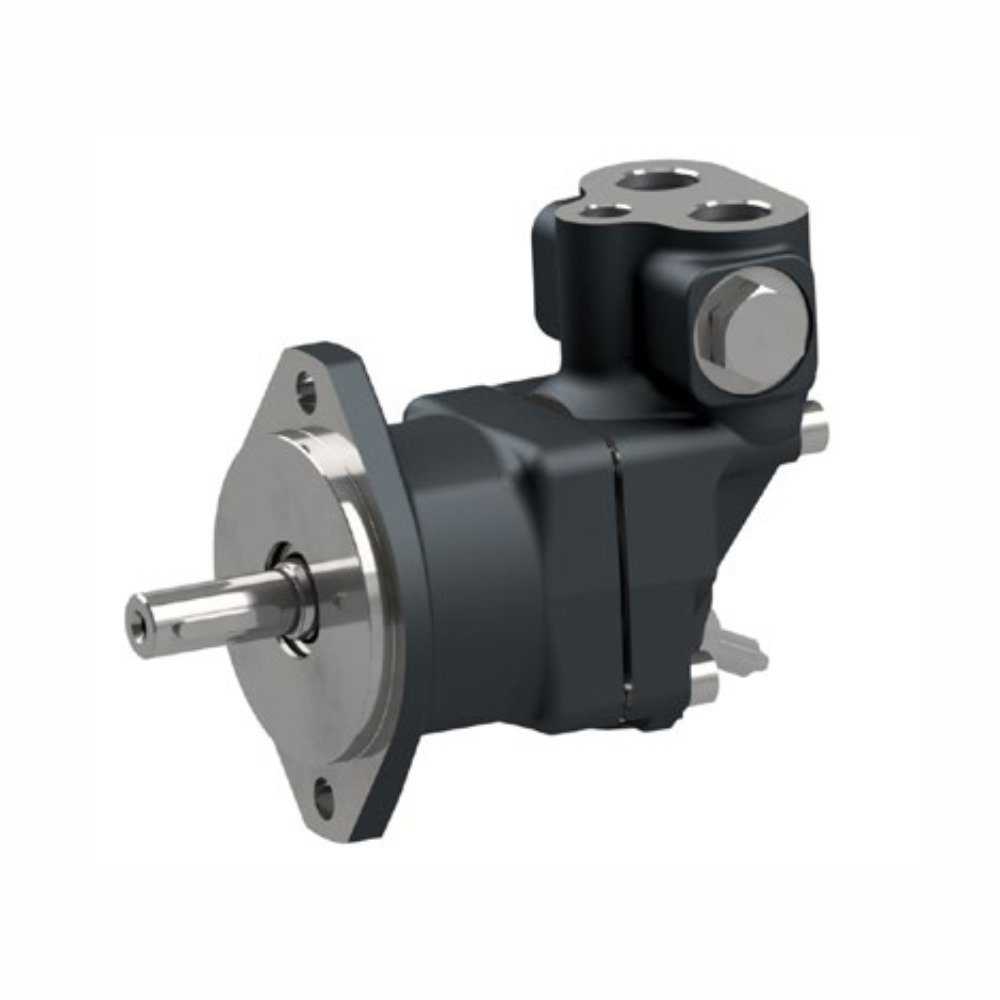

THM – F11 & F12 – Bent Axis Fixed Displacement Motor/Pump

The THM F11 and F12 are bent-axis fixed displacement motor/pumps for open and closed loop circuits. F11 offers 5~19 cc/rev and F12 offers 30~250 cc/rev.

Enquire now WhatsApp Call
Download product brochure
F11 and F12fixed displacement motor/pumps

Specifications

BrandTHM
CategoryFixed Displacement Axial Piston Pump
ModelF11-005-MB-CV-KF11-005-MB-CV-K-000-0000-0TF11-005-SF11-010-MB-CV-K-000-0000-00F11-010-SB-XS-K-285-MUVR-P0F11-014-SB-WV-X-429-MUVR-P0F11-019-SB-XS-X-298-MUVR-B0F12-080-MF-IV-D-000-0000-P0F12-090-MF-IV-D-000-0000-P0F12-090-MS-SV-S-000-0000-P0F12-090-MS-SV-U-000-0000-PTF12-110-MF-IV-D-000-0000-P0F12-110-MF-IV-Z-000-0000-P0F12-110-MF-IV-Z-000-PXXX-P0F12-110-MS-SV-S-000-0000-P0F12-110-MS-SV-S-000-PXXX-P0F12-125-MF-IV-Z-000-0000-P0F12-125-MS-SV-S-000-0000-P0

Overview

The THM- F11 and F12 are high performance bent-axis fixed displacement motor/pumps, designed to be highly efficient, tolerant of speed and operation at high pressure.

THM -F11: Fixed displacement motor/pumps

  • Displacement: 5~19 cc/rev
  • Max intermittent pressure up to 420 bar
  • Continuous operating pressure up to 350 bar

THM – F12: Fixed displacement motor/pumps

  • Displacement: 30~250 cc/rev
  • Max intermittent pressure up to 500 bar
  • Continuous operating pressure up to 450 bar

Key highlights

  1. F11 displacement: 5~19 cc/rev
  2. F11 max intermittent pressure up to 420 bar
  3. F11 continuous operating pressure up to 350 bar
  4. F12 displacement: 30~250 cc/rev
  5. F12 max intermittent pressure up to 500 bar
  6. F12 continuous operating pressure up to 450 bar

Typical applications

  • Open loop circuits
  • Closed loop circuits

Product details

F11 & F12 – Bent Axis Fixed Displacement Motor/Pump

  • THM -F11 is a bent-axis, fixed displacement motor/pump.
  • It can be used in numerous applications in both open and closed loop circuits.
  • The TS-F11 series is available in sizes 5, 6, 8, 10, 12, 14 and 19 cc/rev.
  • Displacement: 5~19 cc/rev
  • Max intermittent pressure up to 420 bar
  • continuous operating pressure up to 350 bar

Features:

  1. Max intermittent pressure up to 420 bar and continuous operating pressure up to 350 bar
  2. Thanks to low weight pistons and a compact design of the rotating parts, the TS-F11 tolerates very high speeds, up to 14000 rpm
  3. CETOP, ISO, SAW and SAE versions

F12 – Bent Axis Fixed Displacement Motor/Pump

  • It can be used in numerous applications in both open and closed loop circuits.
  • The F12 series is available in sizes 30, 40, 60, 80, 90, 110, 125, 152, 162, 182 and 250 cc.
  • Displacement: 30~250 cc/rev
  • Max intermittent pressure up to 500 bar
  • continuous operating pressure up to 450 bar

Features:

  1. Max intermittent pressure up to 500 bar and continuous operating pressure up to 450 bar
  2. The 7 or 9 piston design provides high start-up torque and smooth motor operation
  3. ISO, Cartridge, SAW and SAE versions

General Features:

  • The laminated piston ring offers important advantages such as unbeatable efciency and thermal shock resistance
  • High allowable speeds and operating pressures means high output power
  • The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very
  • robust design with long service life and, above all, proven reliability.
  • The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump.
  • Small envelop size and a high power-to-weight ratio
  • The motor version has highly engineered valve plates for high speed and low noise
  • The pump version has highly engineered valve plates for increased self priming speed and low noise, available with
  • left and right hand rotation.
  • Our unique timing gear design synchronizes shaft and cylinder barrel, making the TS-F11/TS-F12 very tolerant to high
  • ‘G’ forces and torsional vibrations.
  • Heavy duty roller bearings permit substantial external axial and radial shaft loads
