Mobile Hydraulics HT S10
THM

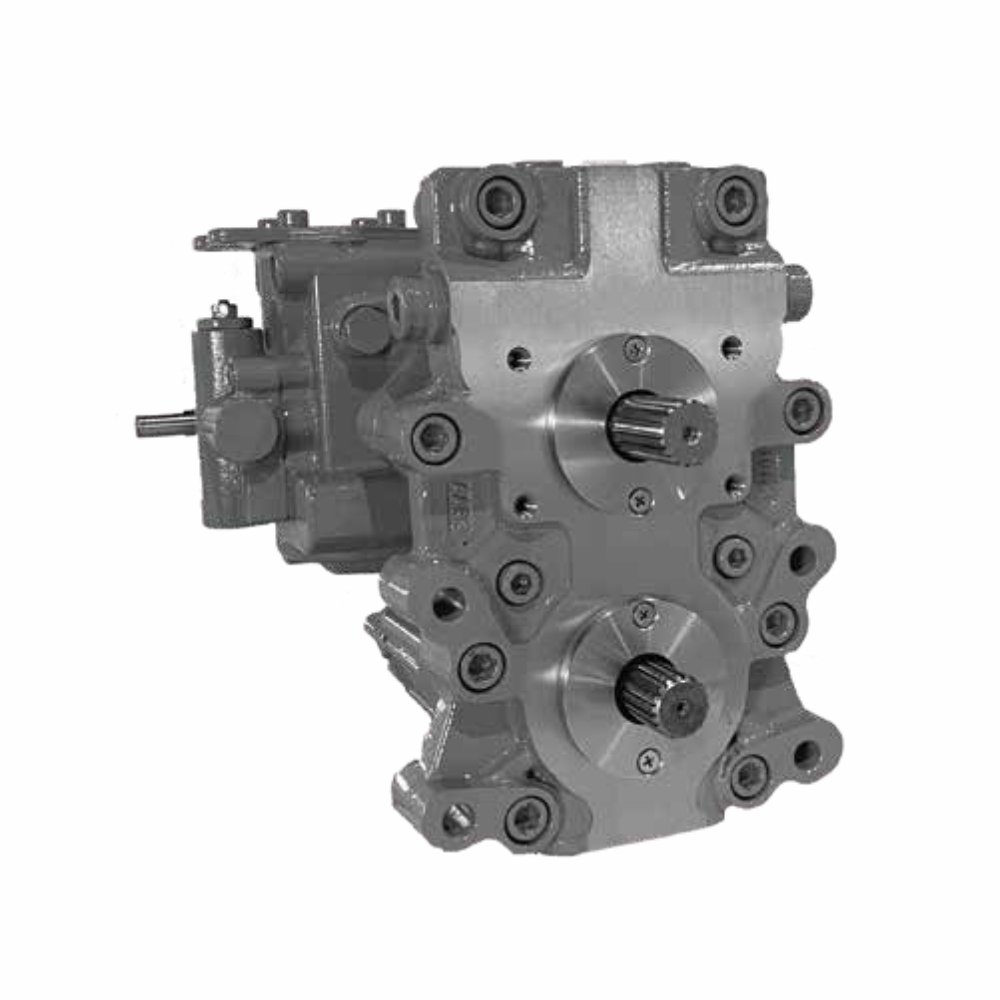

THM – HT S10 – Hydrostatic Transmission

The HT S10 series is an integrated pump and motor hydrostatic transmission developed for agricultural machinery, handling harsh conditions such as high pressure and high speed. It delivers high volumetric efficiency with steplessly adjustable output speed and displacement.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryAdditional Products

Overview

The HT S10 series hydrostatic transmission is an integrated unit of pump + motor developed for agricultural machinery field. This series of devices can give full play to the driving performance of agricultural machinery and meet the application requirements of agricultural machinery customers for harsh working conditions such as high pressure and high speed.

  • Displacement: 56 mL/r.
    Rated pressure: 320 Bar.
    Maximum pressure: 390 Bar.

Key highlights

  1. Integrated unit of pump + motor developed for agricultural machinery
  2. Displacement: 56 mL/r
  3. Rated pressure: 320 Bar
  4. Maximum pressure: 390 Bar
  5. Output volumetric efficiency can reach over 90%
  6. Output speed and displacement are proportional and steplessly adjustable

Typical applications

  • Agricultural machinery

Product details

Features

  • The HT S10 series hydrostatic transmission is an integrated unit of pump + motor developed for agricultural machinery field. This series of devices can give full play to the driving performance of agricultural machinery and meet the application requirements of agricultural machinery customers for harsh working conditions such as high pressure and high speed.
  • The integrated plunger unit developed specifically for agricultural machinery enables the operation performance of agricultural machinery to be fully utilized.
  • High volumetric efficiency, output volumetric efficiency can reach over 90%.
  • Output speed and displacement are proportional and steplessly adjustable.
  • The output speed increases from zero to the maximum value as the swash plate angle increases.
  • The pump and motor are integrated into one, effectively reducing the layout of connecting pipes.
  • Compared with traditional split hydraulic pumps, it has a smaller pipeline pressure loss.
