IGP05
THM

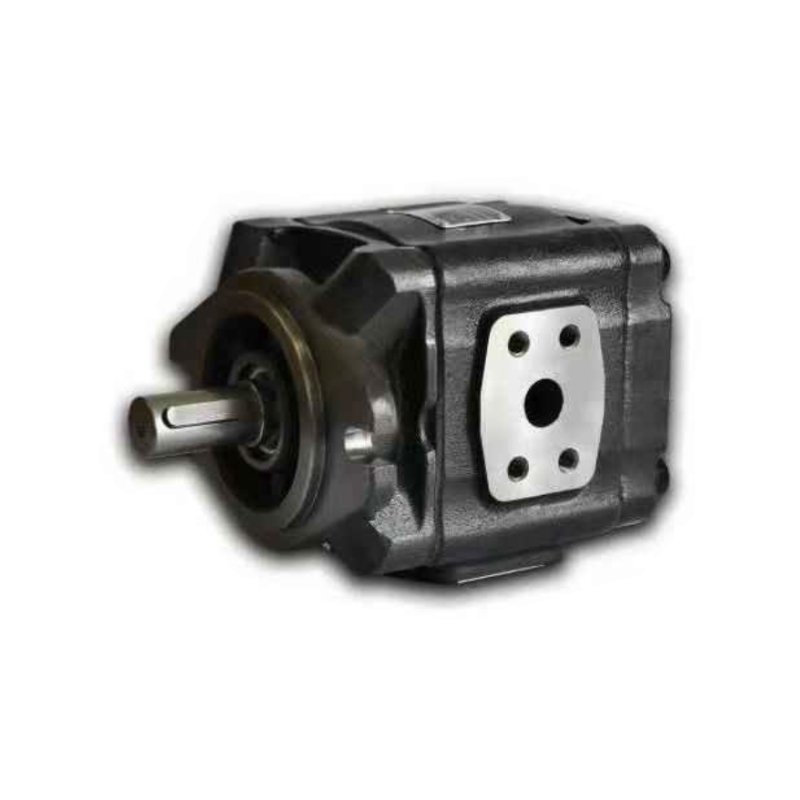

THM – IGP05 Series – Internal gear pump

THM IGP05 Series – Internal gear pump is a high pressure internal gear pump. It features axial and radial pressure compensation for high volumetric efficiency even at low speeds and viscosity.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryInternal Gear Pumps
ModelTHM IGP(H)-33-160-160-02T/R-PVSTHM IGP(H)2-32-02T/R-PVSTHM IGP(H)2-32-02T/R-PVS-L-36THM IGP(H)2-40-02T/L-SVSTHM IGP(H)2-40-02T/R-PVS (T040010174)THM IGP(H)2-40-02T/R-SVSTHM IGP(H)2-50-02T/L-SVSTHM IGP(H)2-50-02T/R-PVS (T050010184)THM IGP(H)2-50-02T/R-SVSTHM IGP(H)2-63-02T/L-SVSTHM IGP(H)2-63-02T/R-PVS-(S10)THM IGP(H)2-63-02T/R-SVSTHM IGP(H)3-100-02T/R-PVS (T010010104)THM IGP(H)3-125-02T/R-PVS-(S10)THM IGP(H)3-145-02T/R-PVSTHM IGP(H)3-145-02T/R-PVS-(S10)THM IGP1-10-01T/R-VPCTHM IGP1-13-01T/R-VPCTHM IGP1-13-02T/R-PVS (T013010123)THM IGP1-16-01T/R-VPCTHM IGP1-16-02T/R-PVS (T016010133)THM IGP1-20-01T/R-VPCTHM IGP1-32-01T/R-VPCTHM IGP2-25-01T/R-VPCTHM IGP2-25-02T/L-SVSTHM IGP2-25-02T/R-PVS (T025010154)THM IGP2-32-01T/R-VPCTHM IGP2-32-01T/R-VSCTHM IGP2-32-02 R T/R-PVS-B (BR Equivalent)THM IGP2-32-02T/L-SVSTHM IGP2-32-02T/R-PVS (T032010166)THM IGP2-40-01T/R-VPCTHM IGP2-40-01T/R-VPC-S10THM IGP2-40-02 R T/R-PVS-B (BR Equivalent)THM IGP2-40-02RT/R-PVS-BTHM IGP2-50-01/R-VPC-L-36THM IGP2-50-01T/R-VPCTHM IGP2-50-01T/R-VPC-L-36THM IGP2-50-01T/R-VPC-S10THM IGP2-50-02 R T/R-PVS-B (BR Equivalent)THM IGP2-50-02T/R-PVSTHM IGP2-63-01/R-VPC-L-36THM IGP2-63-01T/R-VPCTHM IGP2-63-01T/R-VPC-L-36THM IGP2-63-01T/R-VPC-S10THM IGP2-63-02T/R-PVSTHM IGP2-63-02T/R-VPC-S10THM IGP3-100-01T/R-VPCTHM IGP3-100-02T/R-PVSTHM IGP3-125-01T/R-VPCTHM IGP3-125-02T/R-PVS (T012501105)THM IGP3-160-01T/R-VPCTHM IGP3-160-02T/R-PVSTHM IGP3-80-01T/R-VPCTHM IGP3-80-02T/R-PVS-S10

Overview

High pressure internal gear pump
Sizes: 3.5, 4, 5, 6.3
Flow: 3.6, 4, 5.3, 6.5 mL/r
Max. Pressure: 315 bar

Key highlights

  1. Sizes: 3.5, 4, 5, 6.3
  2. Flow: 3.6, 4, 5.3, 6.5 mL/r
  3. Max. Pressure: 315 bar
  4. Max. instantaneous pressure: 350 bar
  5. Speed up to 3000 r/min
  6. Ultra-low noise, low pulsation, insensitive to oil cleanliness

Product details

Features:

  • Axial and radial pressure compensation designs maintain high volumetric efficiency even at low speeds and viscosity.
  • Ultra-low noise, high strength spherical QT600-3 and internal unique noise reduction design, even at high speed, the audio is still smooth.
  • Very low flow rate and pressure pulsation, stable flow rate and pressure output can be maintained at low speed.
  • Insensitive to oil cleanliness, strong anti-fouling ability and long service life.
  • IGP05 series can reach a maximum instantaneous use pressure of 350 bar.
  • Wide range of RPM,  IGP05 series up to 3000 r/min.
