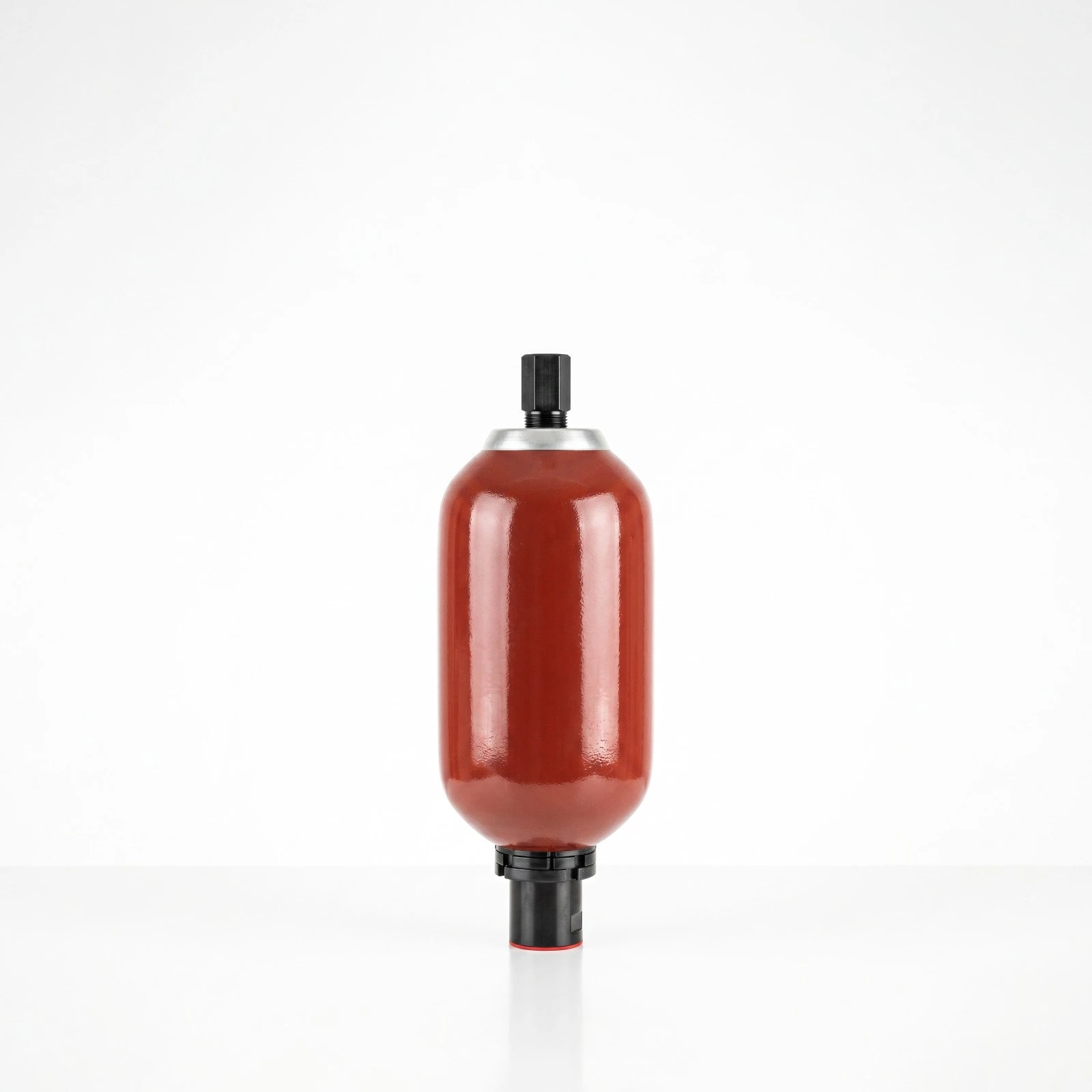

THM – Operation Manual for Bladder Type Accumulator Model TH-AB and AB330
The THM TH-AB and AB330 series bladder type accumulators are hydraulic energy storage devices used to enhance the performance and stability of hydraulic systems by storing and releasing hydraulic energy as needed.
Download product brochureSpecifications
| Brand | Huade |
|---|---|
| Category | Accessories |
Overview
THM Accumulator can provide series of functions in a hydraulic system as follows: energy storage and release, pressure stabilization, power dissipation reduction, leakage compensation, pressure fluctuation absorb ability and shock buffering. This product complies with the standard code GB/T .
Operating Pressure: 315 Bar
Nominal Volume: 4-57 L
Key highlights
- Operating Pressure: 315 Bar
- Nominal Volume: 4-57 L
- Complies with GB/T standard
- Provides energy storage and release, pressure stabilization, leakage compensation
- Absorbs pressure fluctuations and buffers shock/pulsation
- Quick shock response characteristics
Typical applications
- Hydraulic power units and industrial machines
- Mobile equipment
- Presses
- Other hydraulic systems requiring pressure control and energy storage
Product details
THM – Operation Manual for Bladder Type Accumulator
THM TH-AB Series Bladder Type Accumulator is a hydraulic energy storage device that is used to enhance the performance and stability of hydraulic systems. Can store and release hydraulic energy as needed in order to maintain system pressure and compensate for pressure variations.
Key Functions
- Energy storage and release
- Pressure stabilization
- Leakage compensation
- Pressure fluctuation absorption
- Shock/pulsation buffering
- Minimization of hydraulic power loss
Applications
The bladder accumulator can be used in hydraulic power units and industrial machines, mobile equipment, presses and other hydraulic systems where pressure control and energy storage are required.
Benefits
- Supports the system pressure stability
- Dampens out water hammer and pressure fluctuations
- Efficiently helps the hydraulic system to work
- Helps compensate for fluid leakage
- Increases the reliability of the entire system
The Accumulator complies with the conditions and requirements as specified in the relevant GB/T standard in the operation manual. The manufacturer’s instructions should be followed for proper installation, operation and maintenance.
THM – AB330 Series Bladder Accumulators
Operating Pressure: 315 Bar
Nominal Volume: 4-57 L
Bladder accumulators are a very versatile and cost effective option for numerous types of hydraulic systems involving energy storage, shock absorption, pulsation dampening,
leakage loss compensation and volume compensation. They are a first choice for a great variety of general applications and have the widest range of standard sizes
and model options. Bladder accumulators also have very quick shock response characteristics in sizes much larger than diaphragm accumulators.
Applications
Some common applications of bladder accumulators are:
• Agricultural Machinery & Equipment
• Forestry Equipment
• Oil Field & Offshore
• Machine Tools
• Mining Machinery & Equipment
• Mobile & Construction Equipment
• Off-Road Equipment
For specific examples of applications using bladder accumulators.
