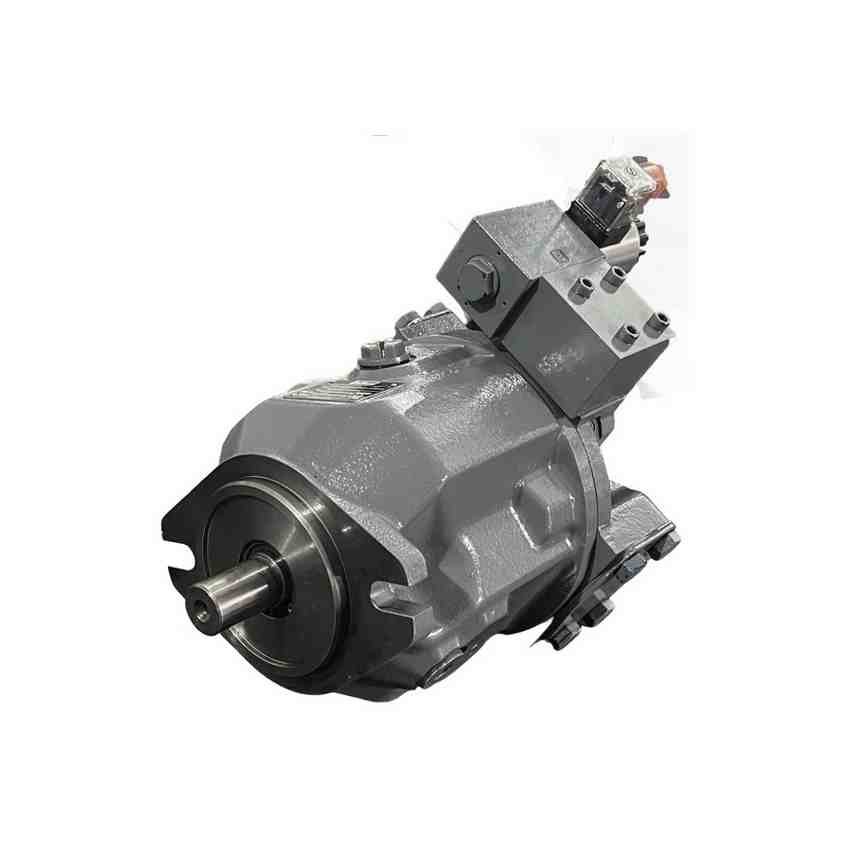

THM-S2VPM
THM

THM – S2VP (DE) Series – Variable Displacement Axial Piston Pump

The THM S2VP (DE) Series is a variable displacement axial piston pump with swash plate design for hydrostatic drives in open circuit operation. It offers precise flow control and continuous operating pressures up to 280 bar.

Enquire now WhatsApp Call
Download product brochure
Axial Piston PumpVariable Displacement Axial Piston Pump

Specifications

BrandTHM
CategoryVariable Displacement Piston Pump

Overview

The THM – S2VP (DE) Series is a high-efficiency variable displacement axial piston pump designed for demanding hydraulic applications. This series offers precise flow control, energy efficiency, and robust performance under high-pressure conditions.

  • Displacement: 28 to 100cc/rev
  • Max. operating pressure: 280 bar

Key highlights

  1. Displacement: 28 to 100cc/rev
  2. Max. operating pressure: 280 bar
  3. Swash plate design with through-shaft structure and plane valve plate
  4. Stepless adjustment via swivel angle of swash plate
  5. Fast control response and high power/weight ratio
  6. Two shell discharge ports

Product details

THM – S2VP (DE) Series – Variable Displacement Axial Piston Pump

This product is an axial piston pump in swash plate design for hydrostatic drives in open circuit operation with through-shaft
structure and plane valve plate. The piston is parallel around the shaft . The flow is proportional to the drive speed and
displacement . The stepless adjustment of the displacement can be materialized by regulating the swivel angle of its swash
plate. lt is rated pressure is up to 280 Bar

Features:

  1. The capacity of the pump is in proportion to its rotating speed and displacement, the step less adjustment of displacement
    can be materialized by regulating the swivel angle of its swash plate.
  2. There are many variable control forms, Fast control response.
  3. Allows for continuous operating pressures up to 280 Bar.
  4. There are two shell discharge ports.
  5. High power/weight ratio.
  6. The drive shaft is able to bear the axial and radial load.
  7. With through-shaft structure, able to form combination pump.
