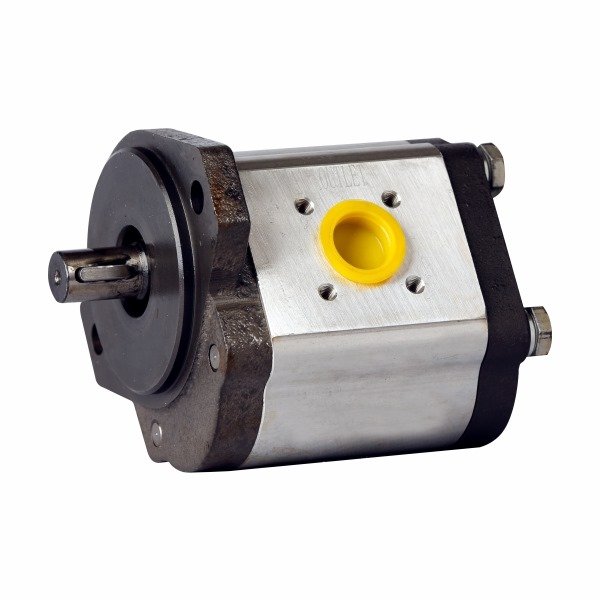

THM -TPF2G4 Series – High Pressure External Gear Pump

Name: THM -TPF2G4 Series – High Pressure External Gear Pump
Brand: THM

The THM -TPF2G4 Series is a high pressure external gear pump offering flows from 40 to 100cc and continuous operation up to 250 bar. It features hydrostatic gap compensation and is built for durability and precision in high-pressure applications.

Enquire now WhatsApp Call

Download product brochure

Gear Pumps Pumps

Specifications

Brand	THM
Category	External Gear Pumps
Size	010012014016018020023025026.5028030032036040045046050052055063071
Model	THM TPF2G4-M1X/046RA-01MRTHM TPF2G4-M1X/052RA-01MRTHM TPF2G4-M1X/063 RA-01MRTHM TPF2G4-M1X/071RA-01MR

Overview

Boost hydraulic efficiency with the THM – TPF2G4 Series High Pressure External Gear Pump, designed for durability and precision. Available at Thm Hydraulics.

Flow: 40 to 100cc
Max. Operating pressure: 250 bar.

Key highlights

Continuous operating pressure up to 250 bar
Flow range 40 to 100cc
Unique sealing design with hydrostatic gap compensation
Special alloy bush with unique lock design
Modified gear tooth to lower operating torque
V option operates from -10°C to +120°C

Typical applications

High pressure hydraulic systems

Product details

Features:

Unique sealing design to operate up to 250 bar continous
Special alloy bush with unique lock design for maximum rigidity
Modified gear tooth to lower operating torque
100% testing on computerised test bench
Long service life
Pumps in “V” option available to operate up to -10°C and +120°C
Completely manufactured on CNC machines
Threaded and range port available
Covers applications for high pressures, substituting costly piston pumps depending on application
New principal of hydrostatic gap compensation
Double pumps available check with us.
