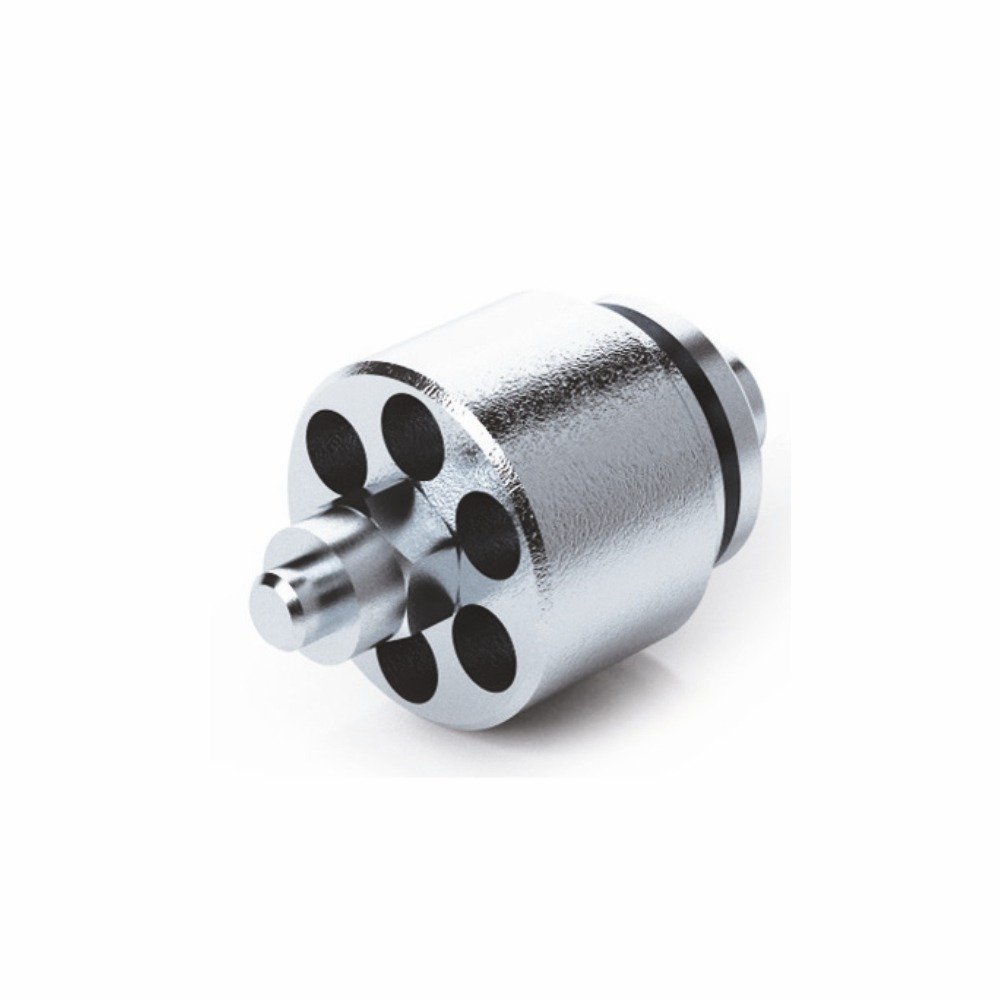

THM – VUBA – Hose Burst Cartridge Valves
THM VUBA hose burst cartridge valves prevent uncontrolled descent of an actuator if a hose bursts. When flow exceeds the valve setting (reaction flow), the valve blocks the flow.
Download product brochureSpecifications
| Brand | THM |
|---|---|
| Category | Cartridges and Manifolds |
| Model | VUBA1"VUBA1"+MMFVUBA1/2"VUBA1/2"+MMFVUBA1/4"VUBA1/4"+MMFVUBA3/4"VUBA3/4"+MMFVUBA3/8"VUBA3/8"+MMF |
Overview
- Sizes: G1/4″, G3/8″, G1/2″, G3/4″, G1″
- Max. Flow: 30, 50, 80, 110, 180 L/min
- Max. Pressure up to 350 Bar
Key highlights
- Sizes: G1/4", G3/8", G1/2", G3/4", G1"
- Max. Flow: 30, 50, 80, 110, 180 L/min
- Max. Pressure up to 350 Bar
- Body: steel, burnished
- Preset hose bursts available on request
- Hole on the flat (CODE/F) for slow load descent
Product details
THM – VUBA – Hose Burst Cartridge Valves – Use and Operation
Valves used to prevent the uncontrolled descent of an actuator in the case of a hose burst. When the flow exceeds the valve setting (reaction flow), the valve will block the flow. these valves are not load holding or unidirectional restrictors.
A flow control valve is recommended downstream of the valve.
Material and Features
Body: steel, burnished.
Connections
Screw the valve into the correct port connecting V to the supply flow and C to the actuator.
On Request
Preset hose bursts available (the reaction flow should be set to 1.5 times the flow rate of the system). Please specify flow (lt/min) or distance S (mm) from the flat to the valve.
Hole on the flat (CODE/F, please specify hole on the sealing face) for a slow load descent with closed valve.
Valve complete with male-female or female-female body for in line mounting by the actuator.
Technical Specifications – VUBA – Hose Burst Cartridge Valves
| Type | Max. Flow L/min | Max. Pressure Bar |
| VUBA 1/4″ | 30 | 350 |
| VUBA 3/8″ | 50 | 350 |
| VUBA 1/2″ | 80 | 350 |
| VUBA 3/4″ | 110 | 350 |
| VUBA 1″ | 180 | 350 |
