THM – WMAP Pressure switches with fixed differential – Accessories

Name: THM – WMAP Pressure switches with fixed differential – Accessories
Brand: THM

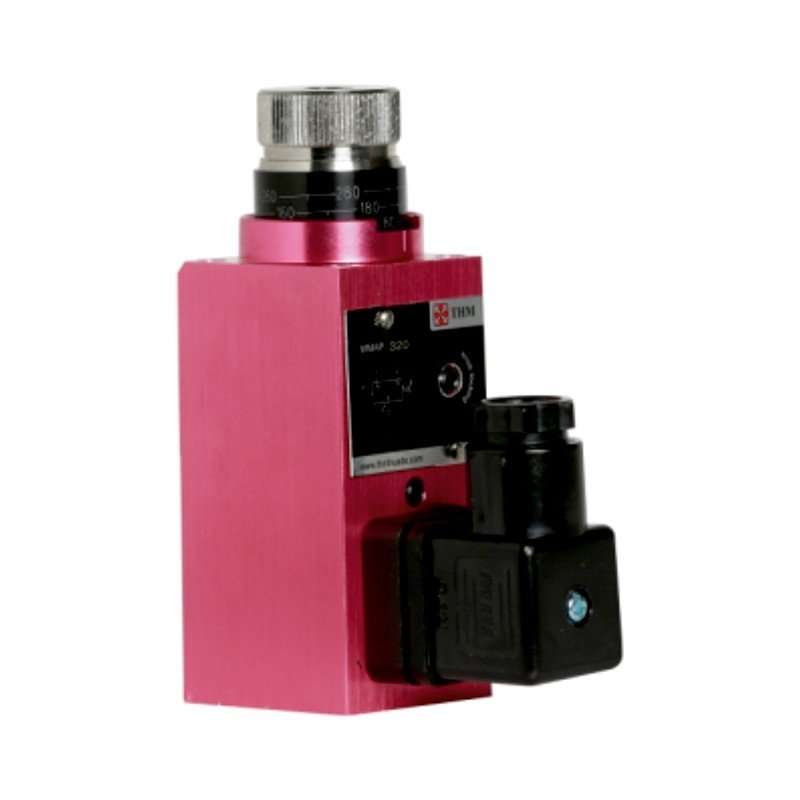

The THM WMAP Pressure Switch with fixed differential opens or closes an electrical contact when hydraulic pressure reaches a set value, and resets when pressure drops by a fixed amount. Maximum pressure is 350 bar.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Accessories
Model	THM WMAP -320THM WMAP-160

Overview

Enhance system reliability with THM – WMAP Pressure Switches, up to 350 bar, ideal for consistent performance. Available at Thm Hydraulics.

Max pressure = 350 bar
WMAP Pressure switches with fixed differential

Key highlights

Max pressure: 350 bar
Fixed differential
Adjustable spring bias piston actuates microswitch
Graduated control knob for pressure setting
Clockwise rotation increases setting pressure
For hydraulic mineral oil or synthetic fluid

Product details

WMAP Pressure switches with fixed differential

Max pressure = 350 bar

Features:

WMAP are pressure switches when open or close an electrical contact when the pressure in the hydrau-lic circuit reaches a given setting.
The original condition of the electrical contact is reset
when the pressure in the hydraulic circuit has dropped of a fix valve below the setting.
The fluid pressure in the circuit operates a piston flitted with adjustable spring bias ; once the pressure setting is reached, the piston is urged forward so as to actuate a microswitch opening or closing its contacts.
The pressure setting is selected by turning a graduated control knob .
Clockwise rotation increases the setting pressure.
Pressure switches are designed to operate in hydraulic systems with hydraulic mineral oil or synthetic fluid having similar lubricating characteristics.
