THM – FPC Electronic Pressure Switch – Electronic tools

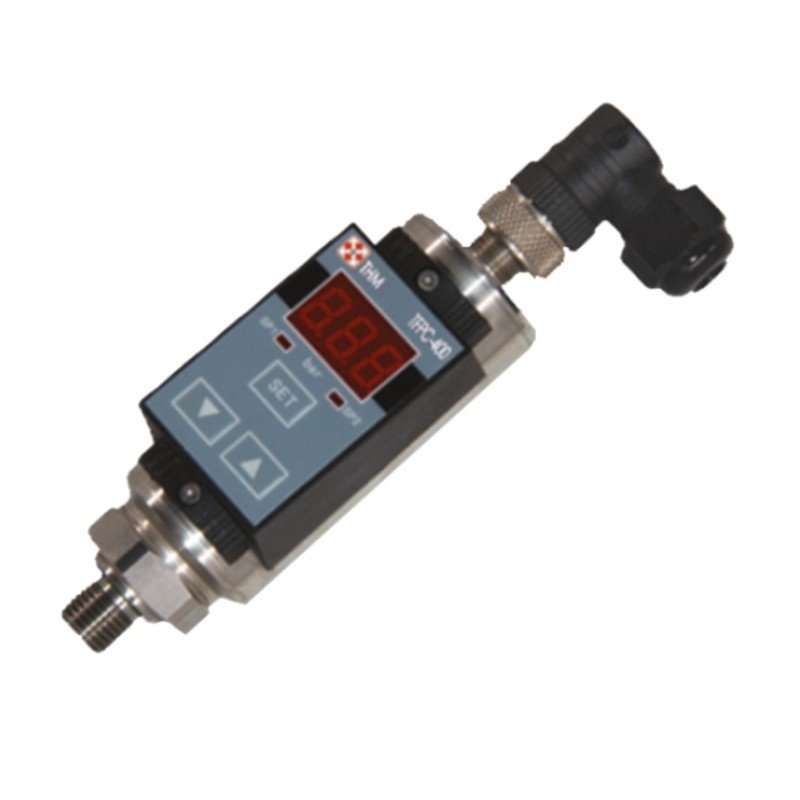

The TFPC is a compact electronic pressure switch with a built-in three-digit digital display. Switching point and hysteresis are adjusted via keypads, and it offers switching or analogue outputs.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryElectronic Tools

Overview

Discover the THM – FPC Electronic Pressure Switch by Thm Hydraulics, offering precision in sizes 16, 40, 100, 250, and 400 bar for efficient control.

  • Size: 16, 40, 100, 250, 400 bar.
  • TFPC Electronic Pressure Switch.

Key highlights

  1. Sizes: 16, 40, 100, 250, 400 bar
  2. Built-in three-digit digital display
  3. Switching point and hysteresis adjusted via keypads
  4. Accuracy class 1%
  5. One or two switching outputs available
  6. Optional analogue output signal 4…20mA

Typical applications

  • Monitoring pressure of hydraulic systems
  • Monitoring pressure of pneumatic systems
  • High switching frequency with high precision

Product details

TFPC Electronic Pressure Switch.

Features:

  •  TFPC is a compact electronic pressure switch with built in digital display in three digits.
  • The switching point and the corresponding hysteresis can be adjusted via keypads.
  • It is high in precision, small in volume. Switching points and switch-back hysteresis can be adjusted independently.
  • Accuracy class1%
  • TFPC can be used in carrying one or two switching output or one analogue signal output besides directly measure the pressure value. Four different output models are available : with one switching point
  • with two switching points and both models can also have an additional analogue output signal 4…20mA
  • It can mainly be used in exactly monitoring pressure of hydraulic and pneumatic system.
  • It can be used in places which needs high switching frequency with high precision.
  • where the normal mechanical pressure relay/switch cannot fulfill the demands.
