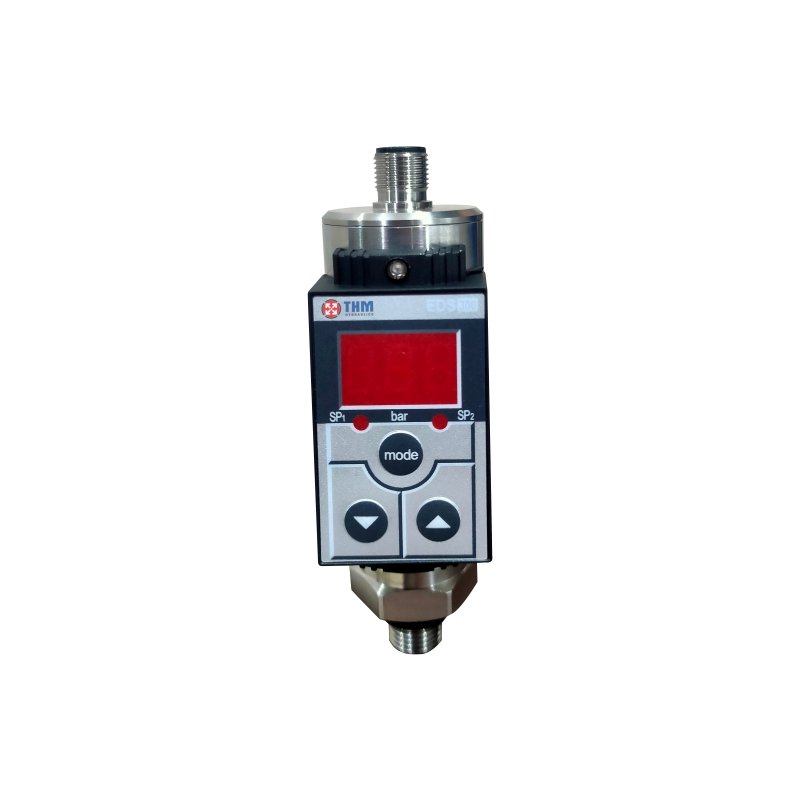

EDS -THM-TEDS3xx
1 / 2
THM

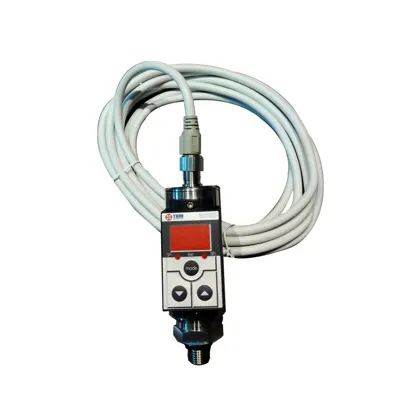

THM-TEDS3xx Series Pressure switch with digital display – Electronic tools

The THM-TEDS3xx Series is a compact electronic pressure switch with an integrated digital display. It supports pressures up to 400 bar, voltage 20…32 VDC and offers 4-20mA or switching output.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryElectronic Tools

Overview

Experience reliable pressure management with the THM-TEDS3xx Series Pressure Switch, equipped with a digital display for easy reading. Available at Thm Hydraulics.

  • Pressure up to 400 bar
  • Voltage 20…32 VDC
  • Output 4-20mA/ Switching

Key highlights

  1. Pressure up to 400 bar
  2. Voltage 20…32 VDC
  3. Output 4-20mA / Switching
  4. Integrated digital display
  5. Thin-film strain gauge on stainless steel membrane
  6. Four output models: one or two switch points, optional 4…20 mA analogue

Typical applications

  • Indicate pressures and limits in hydraulics
  • Applications needing high switching frequency
  • Applications needing constant switching accuracy

Product details

Features:

  • The TEDS 3xx is a compact, electronic pressure switch with an integrated digital display.
  • The integrated pressure sensor is based on a measurement cell with a thin-film strain gauge on a stainless steel membrane.
  • Four different output models are available: with one switch point or with two switch points and both models can also have an additional analogue output signal 4 .. 20 mA.
  • The switch points and the associated hysteresis can be adjusted using the keypad. For optimum adaptation to a particular application, the instrument has many additional adjustment parameters, e.g. switching delay times, N/O / N/C function of the outputs. Applications of the TEDS 3xx are to indicate pressures and limits in hydraulics and anywhere where high switching frequency or constant switching accuracy is required.
