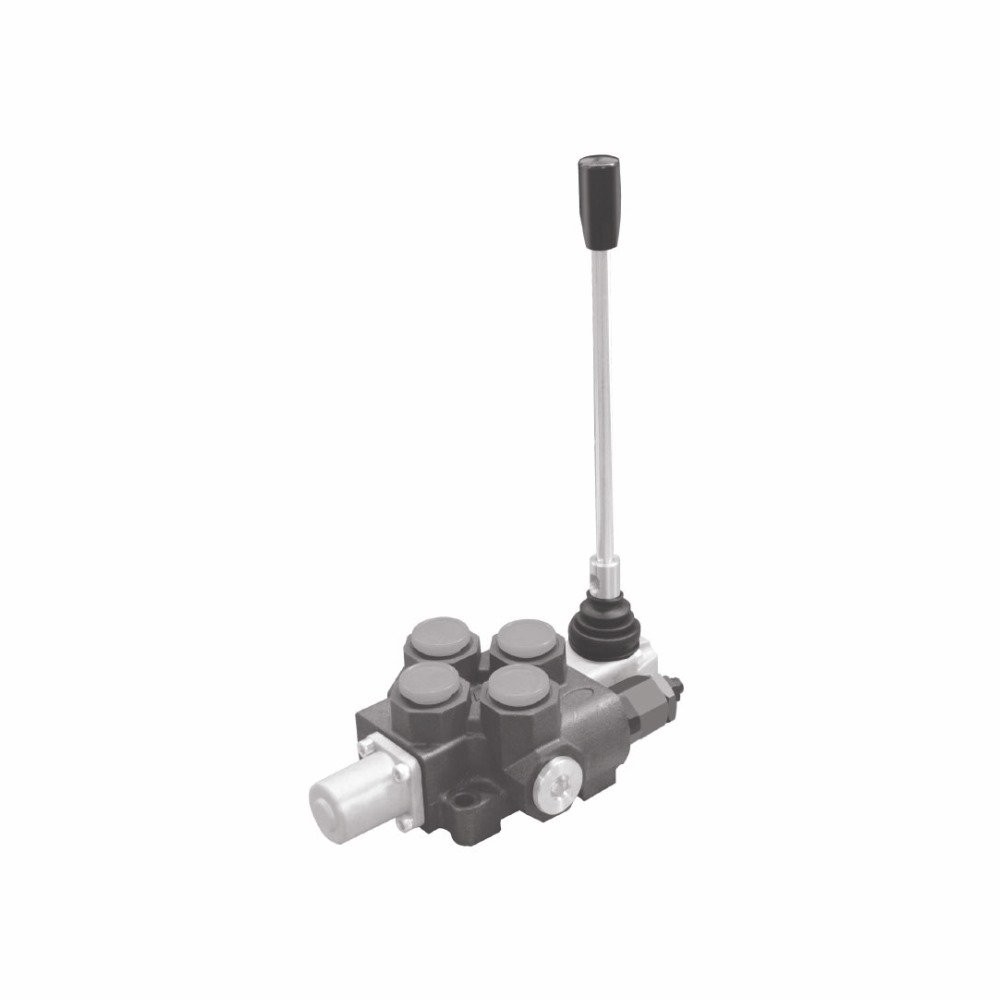

THM – HM10 Series – Monoblock Directional Control Valve

The THM HM10 Series Monoblock Directional Control Valve is a high quality hydraulic control and technology. It can effectively run both open and closed center hydraulic systems, and give the high precision and accuracy in controlling the actuators, hydraulic cylinders, motors, and other equipment.

The HM10 series has a nominal pressure of 20 MPa, maximum pressure of 25 MPa, and maximum flow rate of 120 L/min, which makes this product suitable in the field of the active and powerful industrial and mobile hydraulic applications. Its size is small and light making it easier to install but it has maintained the highest performance and longevity.

Features of THM HM10 Series

• Monoblock design is simple and compact, integrates easily and can be installed without taking much space.
• Intended to fit open center or closed center hydraulic systems.
• Installed with a main pressure relief valve as a system safety and protection measure.
• Parallel oil circuit allows running of many actuators.
• Manual, pneumatic, electro-hydraulic or remote cable controlled.
• Large operating capacity of up to 120 L/min to ensure excellent efficiency.
• Lightweight and durable construction guarantee long life of service and low maintenance.

Applications

• Machinery Construction machinery including excavators, loaders and bulldozers.
• Agricultural machinery such as harvesting and tractor.
• Municipal machines and sanitation including sweepers and compactors.

Advantages

• Ranges of hydraulic actuator control.
• The small single block construction minimizes leakages and enhances efficiency in the system.
• User friendly to customize applications and control.
• Incidental safety as an inbuilt pressure relief valve.
• Passed high stress and heavy duty test performance.

Why Choose THM Huade?

1. Hydraulic products that are genuine and certified all over India.
2. High technology and European engineering.
3. Large selection of hydraulic valves, pumps and motors to meet various industrial requirements.
4. Superior after sales support and service.
5. Tested reliability, extended life and cost efficiency.
