Z50
THM

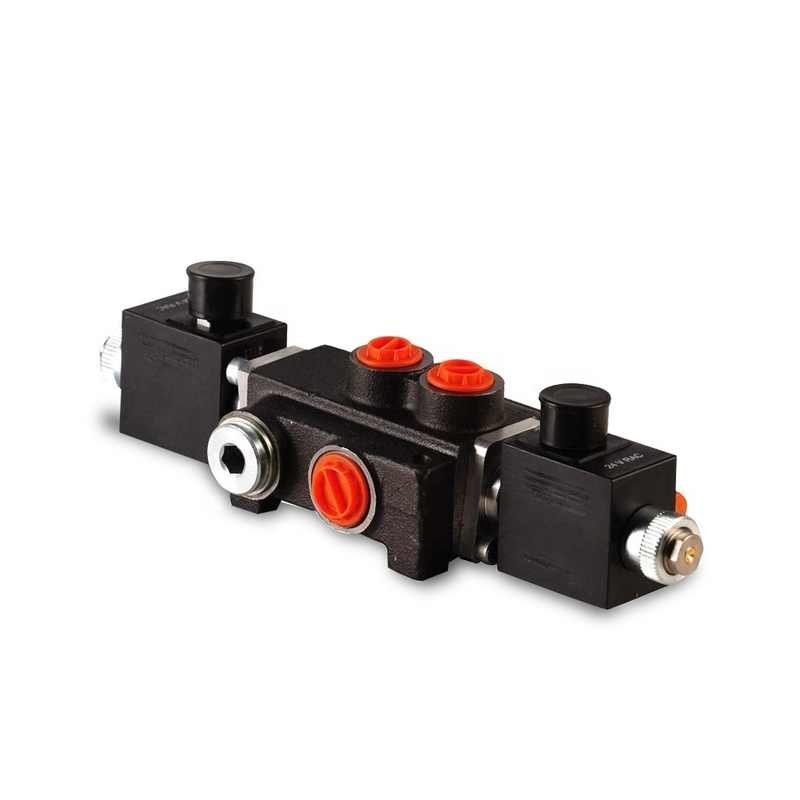

THM – Z50 – Solenoid directional control valve

THM Z50 solenoid directional control valve features 1 to 6 spools, max flow 50 Lpm, max pressure 315 Bar, with built-in check and relief valves.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryDirectional Valves
ModelTHM Z50 AES3-12V DC-GTHM Z50 AES3-24V DC-G

Overview

Solenoid directional control valve
Spools: 1 to 6
Max Flow up to 50Lpm
Max. Pressure up to 315Bar

Key highlights

  1. Solenoid directional control valve
  2. Spools: 1 to 6
  3. Max Flow up to 50Lpm
  4. Max. Pressure up to 315Bar
  5. Built-in check valve and relief valve
  6. Coils, Connector ISO4400: 12VDC, 24VDC

Product details

Features:

  • Built-in check valve: The check valve inside the valve body is to ensure the hydraulic oil does not return.
  • Built-in relief valve: The relief valve inside the valve body is provided to adjust the hydraulic system working pressure.
  • Oil way: Parallel circuit, power beyond option
  • Coils, Connector ISO4400: 12VDC, 24VDC
  • Threads: P,T ports – G1/2″, A,B ports – G3/8″
  • Valve Construction: Monoblock construction, 1-7 spools.
  • Bores are honed precisely and fine spool grinding results in less cross-port leakage and hence less heat generated.
