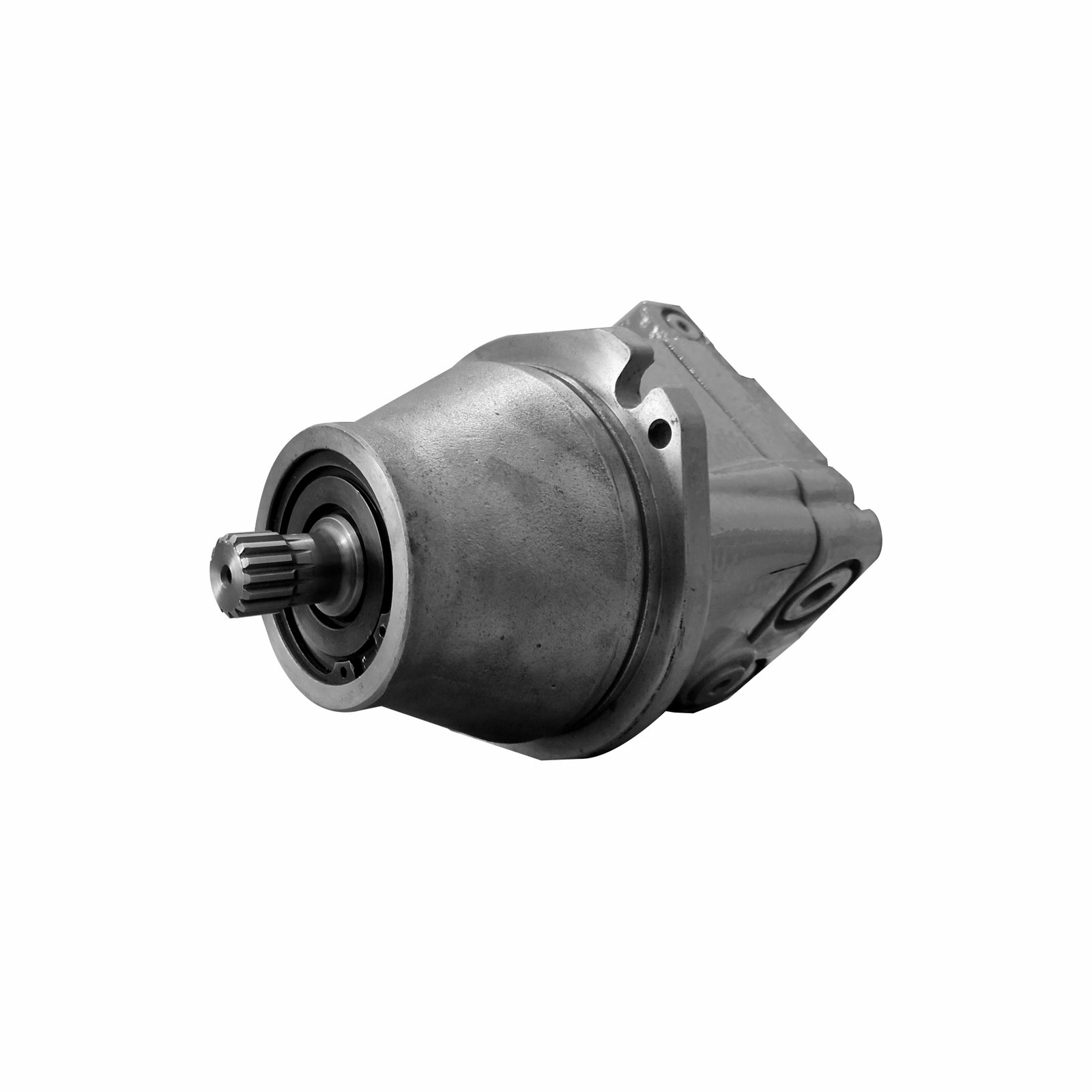

THM – Track Motor
The THM Track Motor is a bidirectional hydraulic motor with a displacement range of 17.5 to 45 ml/r. It delivers continuous pressure up to 175 bar and maximum pressure up to 350 bar.
Download product brochureSpecifications
| Brand | THM |
|---|---|
| Category | Additional Products |
Overview
We offer a wide range of hydraulic products, including THM -Track Motors known for their durability and high performance. We’ve got you covered with quality solutions tailored to your industrial applications.
Key highlights
- Bidirectional operation
- Max. displacement 45 ml/r
- Minimum displacement 17.5 ml/r
- Continuous pressure 175 bar
- Max. pressure 350 bar
- Max. speed 3500 r/min (large displ) / 4650 r/min (small displ)
Product details
| Direction | Bidirectional |
| Max. Displacement | 45 ml/r |
| Minimum Displacement | 17.5 ml/r |
| Continuous pressure | 175 bar |
| Max. pressure | 350 bar |
| Max. Speed (Large displ) | 3500 r/min |
| Max. Speed (Small displ.) | 4650 r/min |
| Shell pressure | 2 bar |
| Output torque | 0.75 Nm/bar |
| External control port pressure | 14~69 bar |
| Volumetric efciency | not less than 95% |
| Working temperature | -25°C~+100°C |
