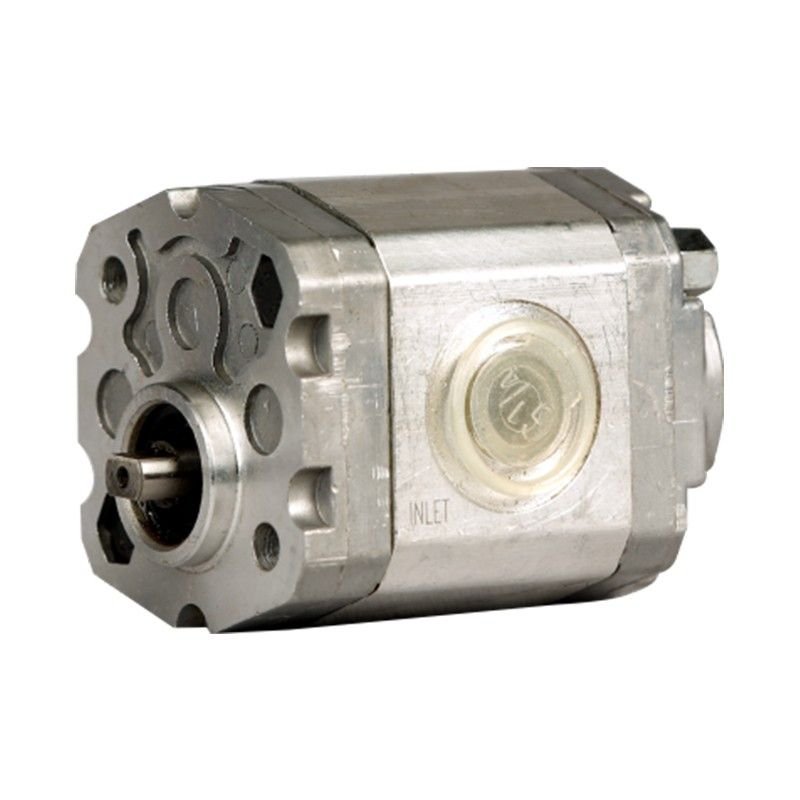

THM – TPF2G0.5 -High Pressure External Gear Pump

Name: THM – TPF2G0.5 -High Pressure External Gear Pump
Brand: THM

The THM TPF2G0.5 is a high pressure external gear pump with a flow range of 0.19 to 2.00 cc. It features a unique sealing design, special alloy bush, modified gear tooth, and 100% testing on a computerized test bench.

Enquire now WhatsApp Call

Download product brochure

Gear Pumps Pumps

Specifications

Brand	THM
Category	External Gear Pumps
Size	0.190.260.380.500.650.750.881.001.251.501.752.00
Model	TPF2G.05M1X/0.19RA-01MRTPF2G0.5-M1X/0.75RC-01-MSTPF2G0.5M1X/0.26RA-01MRTPF2G0.5M3X/0.19RA-01MRTPF2G0.5M3X/0.38RA-01MRTPF2G0.5M3X/0.50RA-01MRTPF2G0.5M3X/0.75RA-01MRTPF2G0.5M3X/0.88 RA01MRTPF2G0.5M3X/1.00 RA01 MRTPF2G0.5M3X/1.25RA-01MRTPF2G0.5M3X/1.50RA-01MRTPF2G0.5M3X/1.75RA-01MRTPF2G0.5M3X/2.00RA-01MR

Overview

Flow: 0.19 to 2.00cc.
Max. Operating pressure: 210 bar.

Key highlights

Flow: 0.19 to 2.00 cc
Max operating pressure: 210 bar
Unique sealing design to operate up to 250 bar continuous
Special alloy bush with unique lock design
Modified gear tooth to lower operating torque
100% testing on computerized test bench

Product details

Features:

Unique sealing design to operate up to 250 bar continuous.
Special alloy bush with unique lock design for maximum rigidity modified gear tooth to lower operating torque, 100% testing on computerized test bench.
Long service life.
Pump in”V” option available to operate up to – 10 degree C and 120 degree C, “G”- BSP ports as per ISO228/1 as standard and other threaded and flange port available, new principle of hydraulic gap compensation.
