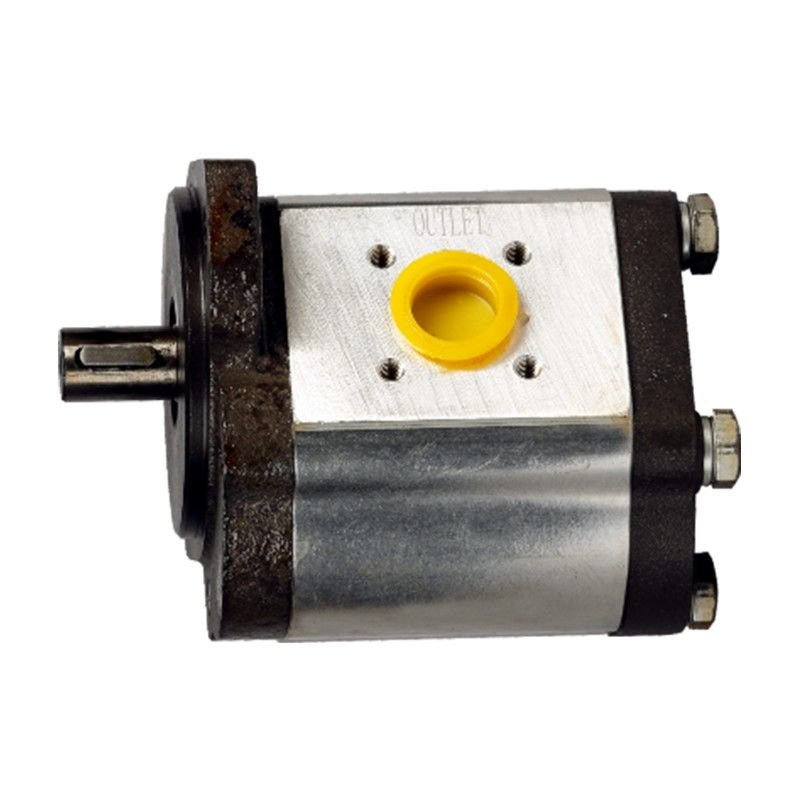

THM -TPF2G3 Series – High Pressure External Gear Pump

Name: THM -TPF2G3 Series – High Pressure External Gear Pump
Brand: THM

The THM TPF2G3 Series is a high-pressure external gear pump with flow rates from 20 to 71 cc and a maximum operating pressure of 250 bar. It is built for durability and precision in demanding hydraulic applications.

Enquire now WhatsApp Call

Download product brochure

Gear Pumps Pumps

Specifications

Brand	THM
Category	External Gear Pumps
Size	010012014016018020023025026.5028030032036040045046050052055063071
Model	THM TPF2G3-M1X/046RA-01MRTHM TPF2G3-M1X/052RA-01MRTHM TPF2G3-M1X/063 RA-01MRTHM TPF2G3-M1X/071RA-01MR

Overview

Boost hydraulic efficiency with the THM – TPF2G3 Series High Pressure External Gear Pump, designed for durability and precision. Available at Thm Hydraulics.

Series: 11 to 19
Flow: 20 to 71cc
Max. Operating pressure: 250 bar.

Key highlights

Series 11 to 19
Flow 20 to 71 cc
Max operating pressure 250 bar
Continuous operation up to 250 bar
Available in sizes 010 to 071

Typical applications

High pressure hydraulic systems

Product details

Features:

Unique sealing design to operate up to 250 bar continuous.
Special alloy bush with unique lock design for maximum rigidity modified gear tooth to lower operating torque, 100% testing on conputerised test bench.
Long service life, pump in”V” option available to operate up to – 10 degree C and 120 degree C, completely manufactured on CNC machines, threaded and flange port available, covers applications for high pressures.
Substituting costly piston pump application.
New principal of hydraulic gap compensation.
