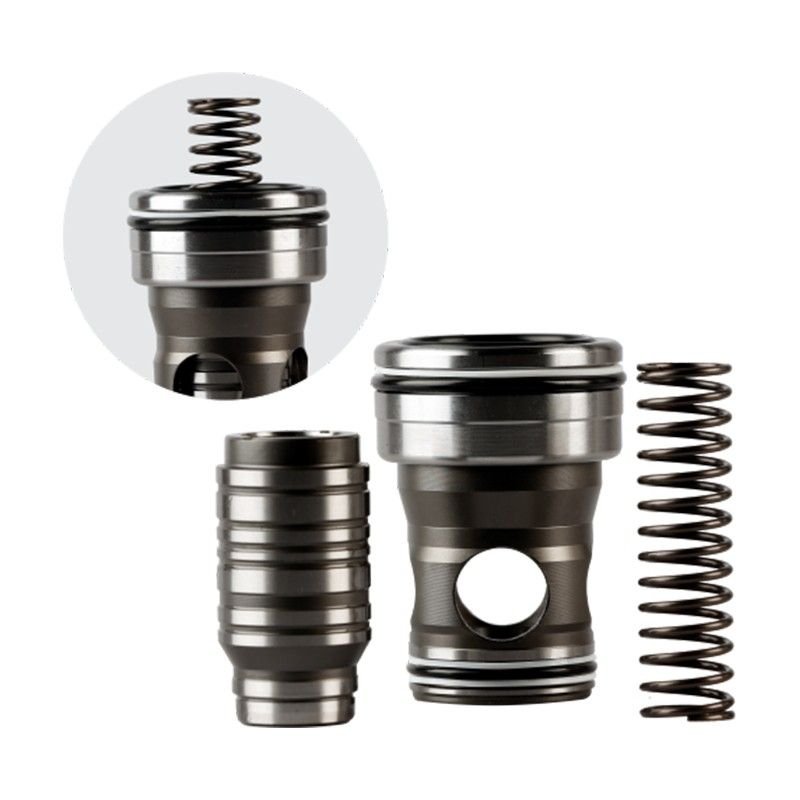

THM – LC 2-way Cartridge Valve – Directional Valves

Name: THM – LC 2-way Cartridge Valve – Directional Valves
Brand: THM

THM LC 2-way cartridge valve for directional control, available in sizes 16 to 63. It features a valve poppet with or without damping nose and multiple control cover options.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Directional Valves
Model	THM LC NG10THM LC-32-DB-20-A-7XTHM LC-32-DB-20-E-7XTHM LC16A140D-7XTHM LC16A20D-7XTHM LC16A20E-70XTHM LC16A20E-7XTHM LC16A40DTHM LC16A40D W/o. SpringTHM LC16B05E-7XTHM LC16DB05E-7XTHM LC16DB140E-7XTHM LC16DB20A-7XTHM LC16DB20D-6XBTHM LC16DB20D-6XB (SRPING ONLY)THM LC16DB40E-7XTHM LC16DR 20E 7XTHM LC25 A 05E-7XTHM LC25A-30D 7X ONLY SPRINGTHM LC25A20D-7XTHM LC25DB 20E-7XTHM LC25DB20A-7XTHM LC25DB30DTHM LC32A20D-7XTHM LC32A40D-7XTHM LC32B20E-7XTHM LC40A05D-7XTHM LC40A20D-7XTHM LC40A20E-7XTHM LC40A40D-7XTHM LC40A40D-7X (W/O SPRING)THM LC40DB20E-7XTHM LC40DB40E-7XTHM LC50A20D-7XTHM LC50A20E-7XTHM LC50A40D-7XTHM LC50B20E-7XTHM LC50DB20A-7XTHM LC50DB20E-7XTHM LC63A20D-7XTHM LC63A20D-7X (SPRING ONLY)THM LC80A05D-6XTHM LC80A20D-6XTHM- LC16A-05DTHM- LC16A-05E-7XTHM- LC16A-30DTHM-LC25A05D-7XTHM-LC25A40D-7XTHM-LC32A05E-7X

Overview

Size-16,25,32,40,50,63
Type HD-LC
Max. pressure upto 420 bar
Max. Flow 3000L/min

Key highlights

Size-16,25,32,40,50,63
Type HD-LC
Max. pressure up to 420 bar
Max. Flow 3000 L/min
Valve poppet with or without damping nos 2 area ratios
Control cover with built-in poppet valve

Product details

Features:

Valve poppet with or without damping nos 2 area ratios
4 different springs
2 stroke limiters
Control cover with built-in poppet valve
Control cover with built-in shuttle valve
Control cover for mounting directional spool valves with or without built-in shuttle valve
Control cover for mounting directional poppet valves with or without built-in shuttle valve
