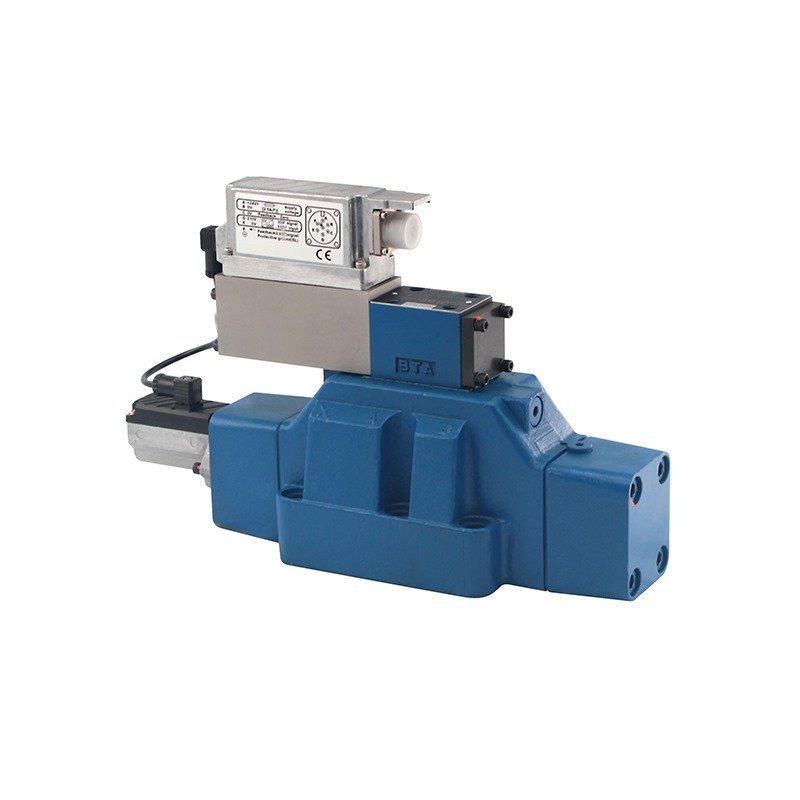

THM- 4WRLE – Proportional Valve

Name: THM- 4WRLE – Proportional Valve
Brand: THM

The THM 4WRLE Proportional Valve is a high-response, pilot-operated directional control valve with electrical position feedback and integrated electronics.

Enquire now WhatsApp Call

Download product brochure

Proportional Valves

Specifications

Brand	THM
Category	Proportional Valves

Overview

The THM – 4WRLE Proportional Valves provide enhanced control functions to enhance performance as well as energy efficiency and operational precision in contemporary hydraulic applications. High-response directional control valves, pilot operated, with electrical position feedback and integrated electronics(OBE)

Size 10 … 27
Component series 4X
Maximum operating pressure 350bar

Key highlights

Size 10 … 27
Component series 4X
Maximum operating pressure 350bar
High-response 2-stage proportional directional valve
Electrical connection: 6P+PE
For subplate mounting: porting pattern to ISO4401(NS 10…27)

Typical applications

Industrial machinery systems
Injection molding machines
Mobile hydraulics systems

Product details

THM – 4WRLE – Proportional Valves

The THM – 4WRLE Proportional Valve operate as high-end electro-hydraulic valves that precisely control hydraulic system flow and pressure. These valves operate applications that require both smooth response and precise and dynamic operation.

Key Features:

✔ Electro-Hydraulic Control: Ensures precise flow and pressure regulation
Proportional Control allows the valve to generate adjustable outputs when electrical input signals are provided.
✔ High Dynamic Response: Suitable for complex automation and motion control systems
✔ Robust Design: Built for reliable operation under demanding conditions
The THM – 4WRLE proportional valves serve industrial machinery systems as well as injection molding machines and mobile hydraulics systems and additional applications.

The THM – 4WRLE Proportional Valves provide enhanced control functions to enhance performance as well as energy efficiency and operational precision in contemporary hydraulic applications.

Features:

High-response 2-stage proportional directional valve, pilot valve and main valve with electrical position feedback, integrated digital controller
Pilot valve: using spool/sleeve structure with servo valve performance, closed-loop position control
Control spool of the main stage in the spring centered central position and/or in the offset position
Flexible – suitable for position, speed and pressure control
Precise – high response sensitivity and little hysteresis
For subplate mounting: porting pattern to ISO4401(NS 10…27)
Electrical connection: 6P+PE
