THM – LSPV Series – Proportional Valve

Product details

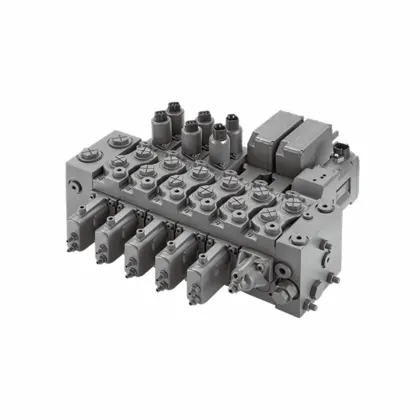

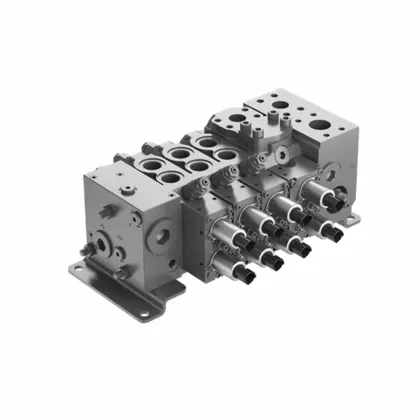

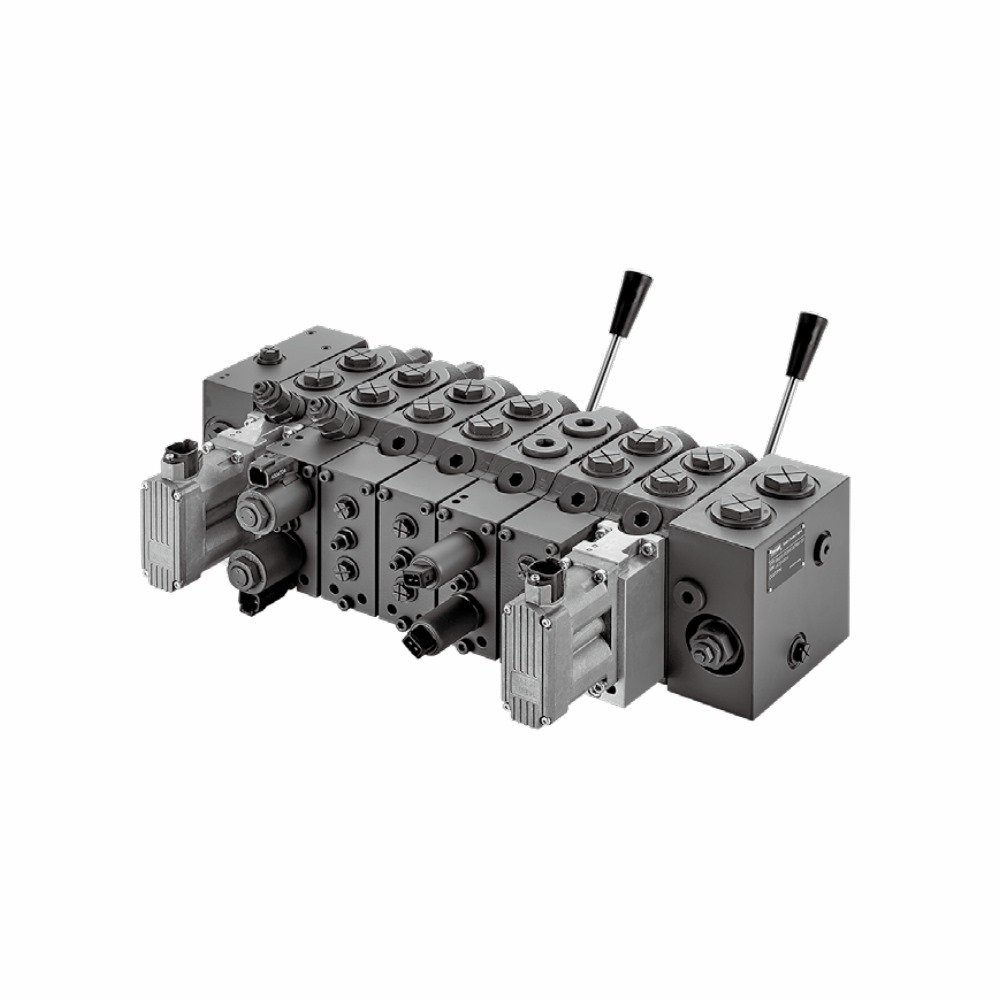

THM – LSPV Series – Proportional Valve

THM -LSPV Series is a high-performance load sensing proportional control valve which is responsive and efficient in regulating hydraulic flow. It automatically regulates the output in accordance to the load conditions providing accurate control and saving energy in both mobile and industrial hydraulic systems.

Features:

1. System

• Load pressure independent flow distribution
• Closed center, for load sensing variable pump system
• Open center, for fixed displacement pump system
• Priority function
• Various pilot control methods

2. Structure

• Sandwich plate of design
• Max. 15 middle sec on (LSPV12)
• Max. 9 middle sec on (LSPV15)
• Max. 9 middle sec on(LSPV20)
• Max. 8 middle sec on(LSPV25)

3. Pressure

• Primary and secondary pressure relief valve
• LS relief valve: With LS pressure relief valve in each section

4. Flow

• Load pressure compensated
• Quick response
• Low hysteresis

5. Applications

• Aerial work platform
• Concrete pump truck
• Forestry machine
• Crane
• Drilling rigs
• Telehandler
• Mining truck
• Stone Crusher
