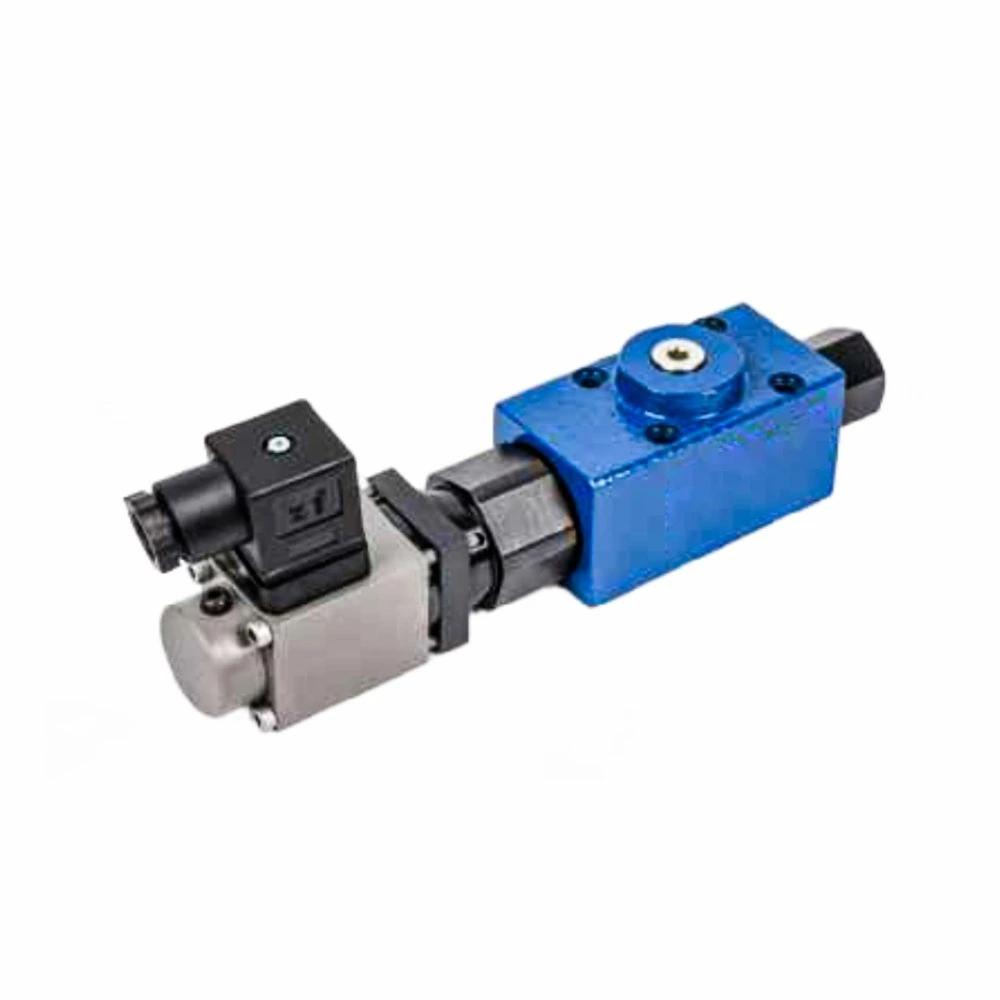

THM – (Z)DRE(E)-XT – Proportional Pressure Reducing Valve

Name: THM – (Z)DRE(E)-XT – Proportional Pressure Reducing Valve
Brand: THM

THM (Z)DRE(E)-XT is a proportional pressure reducing valve, size 6, with maximum working pressure 210 bar and maximum working flow 30 L/min. It is pilot operated and controlled by proportional solenoids.

Enquire now WhatsApp Call

Download product brochure

Proportional Pressure Reducing Valve Z)DRE(E)-XT

Specifications

Brand	THM
Category	Proportional Valves

Overview

Size 6
Maximum working pressure 210bar
Maximum working flow 30L/min

Key highlights

Size 6
Maximum working pressure 210 bar
Maximum working flow 30 L/min
Pilot operated valve for pressure reducing in ports A and P
Operated by proportional solenoids
Subplate mounting or sandwich plate connection

Product details

THM- (Z)DRE(E)- XT – Proportional Pressure Reducing Valve

Size 6
Maximum working pressure 210bar
Maximum working flow 30L/min

Features of Proportional Pressure Valve

Pilot operated valve for pressure reducing in ports A and P with pressure limitation.
Operated by proportional solenoids.
Subplate mounting or sandwich plate connection.
Low manufacturing tolerance of the command value-pressure characteristic curve due to electrical compensation to the proportional solenoids.
The minimum adjustable pressure at port A and P is bar.
