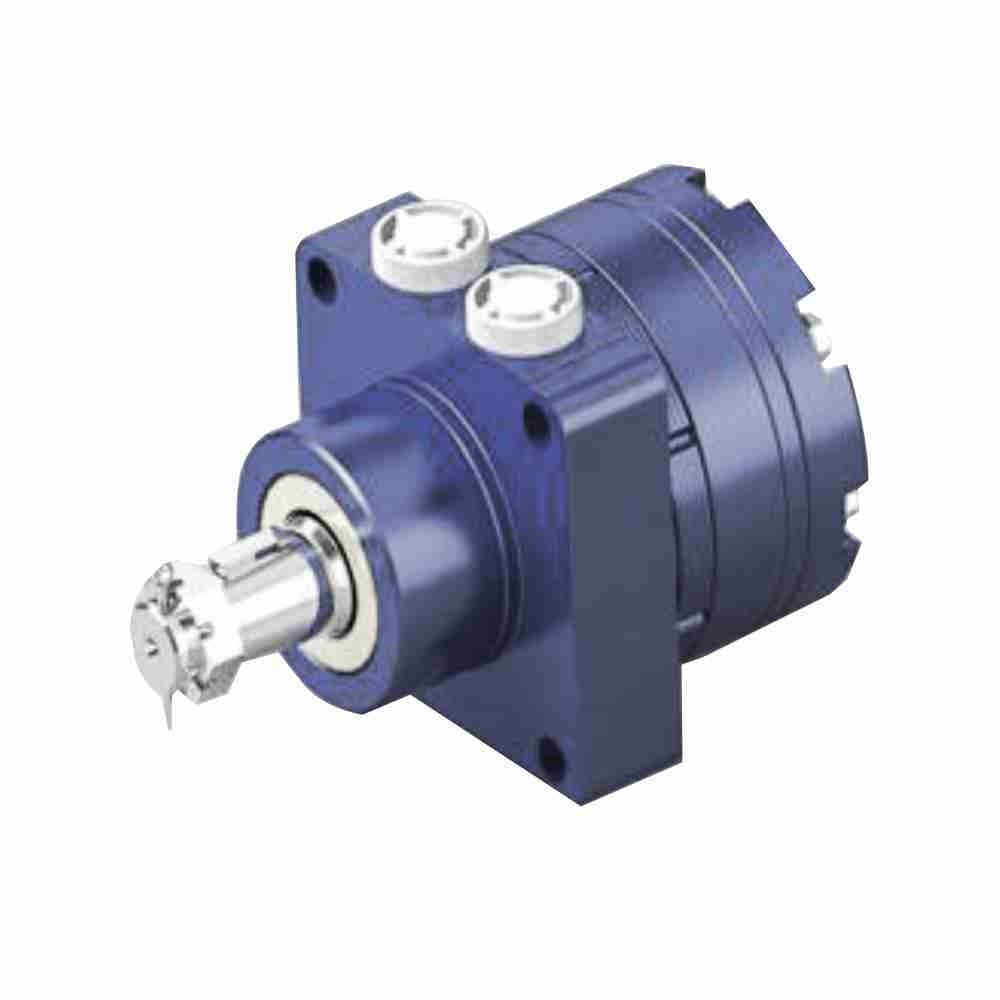

THM – BME Series – Hydraulic Orbital Motor

The THM BME Series hydraulic orbital motor features an advanced geroler gear set for high pressure, high efficiency, and low speed applications. It maintains high volume efficiency and long working life.

Enquire now WhatsApp Call
Download product brochure
BME SeriesHydraulic Orbital Motor

Specifications

BrandTHM
CategoryOrbital Motors

Overview

BME series motor has advanced geroler gear set design, they are suited for high pressure high efficiency, low speed applications. It can Keep high volume efficiency, long working life.

  • Displacement: 125 ~750 cc/rev
  • Maximum Continuous Pressure up to 205 bar

Key highlights

  1. Displacement: 125 ~750 cc/rev
  2. Maximum Continuous Pressure up to 205 bar
  3. Advanced geroler gear set design
  4. Needle bearings for high axial and radial forces
  5. Runs smoothly at low speed

Product details

THM – BME Series – Hydraulic Orbital Motor

BME series motor has advanced geroler gear set design, they are suited for high pressure high efficiency, low speed applications. It can Keep high volume efficiency, long working life.

Features

  1.  Advanced geroler gear set design, low pressure of start-up ,high efficiency.
  2.  High pressure applications, high torque. has needle bearings design, it can bear high axial and radial forces.
  3.  Advance high speed distribution low design, automatically compensate in operating, high volume efficiency, run smoothly at low speed.

Technical Specifications

Type   125 160 200 230 250 300 350 375 475 540 750
Displacement L/r)   127 163 200 225 259 295 295 349 473 540 295
Flow (LPM) Cont.

Int.

 45 60 60 75 70

85

 70
85		 75
90		 80
95		 80
95		 75
90		 75
90		 75
90		 75
90
Speed (RPM) Cont.

Int.

 336
450		 350 440 330 425 290 365 290 350 250
315		 250 315 215 365 200 240 140 170 100 120
Pressure (MPa) Cont.

Int.

 20.5 24 20.5 24 20.5 24 20.5 24 20.5 24 20.5 24 20.5 24 20.5 24 17.5
19		 14 17.5 10.5 12
Torque (Nm) Cont.

Int.

 349 408 470 548 532 602 625 710 700 790 810
930		 810 930 905 1035 990 1140 980 1240 1050 1180

Note:
1. Continuous data: The Max. Value of operating motor continuously.
2. Intermittent Data: The Max. Value of operating motor in 6 seconds per minute.
3. A simultaneous max. RPM and max. pressure is not recommended.
4. Optimum operating situation should be at the 1/3～2/3 of the continuous operating situation
