THM – BMK2/2K – Orbital Motors

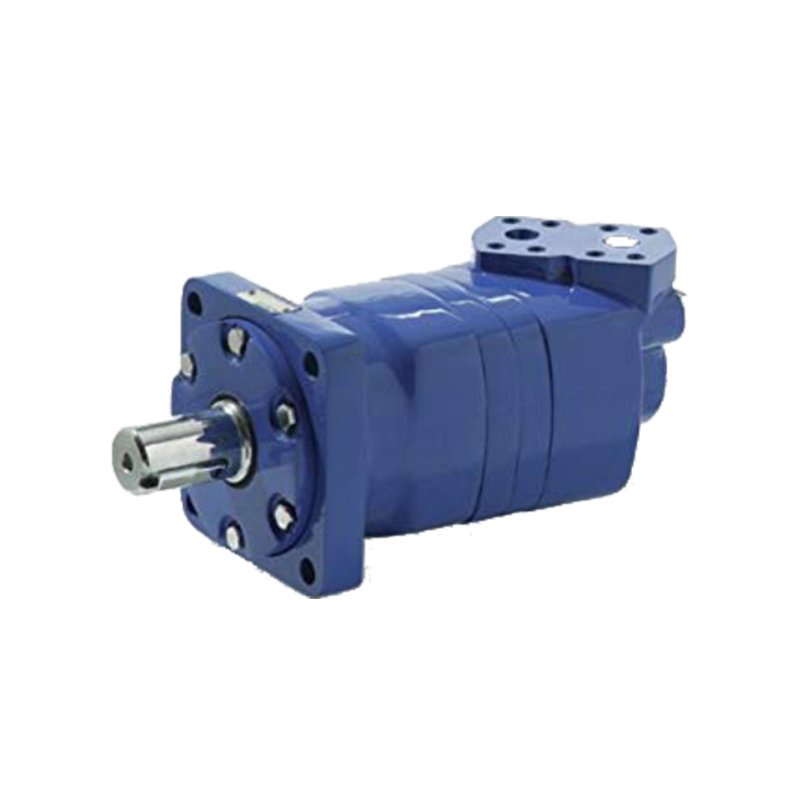

Name: THM – BMK2/2K – Orbital Motors
Brand: THM

The THM BMK2/2K is an orbital hydraulic motor with sizes from 65 to 475cc/rev and max pressure up to 210Bar. It features tapered roller bearings and disc distribution for high efficiency and long life.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Orbital Motors
Size	1001251602002503154004756580
Model	2K-1002K-1252K-1602K-2002K-2502K-3152K-4002K-4752K-652K-80BMK2-100BMK2-125BMK2-160BMK2-200BMK2-250BMK2-315BMK2-400BMK2-475BMK2-65BMK2-80

Variations

Size: 65, Model: bmk2-65
Size: 80, Model: bmk2-80
Size: 100, Model: bmk2-100
Size: 125, Model: bmk2-125
Size: 160, Model: bmk2-160
Size: 200, Model: bmk2-200
Size: 250, Model: bmk2-250
Size: 315, Model: bmk2-315
Size: 400, Model: bmk2-400
Size: 475, Model: bmk2-475

Overview

Orbital Hydraulic Motor
Sizes: 65 to 475cc/rev
Max. Pressure up 210Bar

Key highlights

Sizes: 65 to 475cc/rev
Max. Pressure up 210Bar
Output shaft adapts in tapered roller bearings
Advanced design in disc distribution flow
Suitable for vehicles with greater loads and pressure drop

Product details

Features:

Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities
of high pressure and high torque in the wide of applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency
and long life , provide smooth and reliable operation.
The new series motor is suitable for vehicles with greater loads and pressure drop.
