BMK6
THM

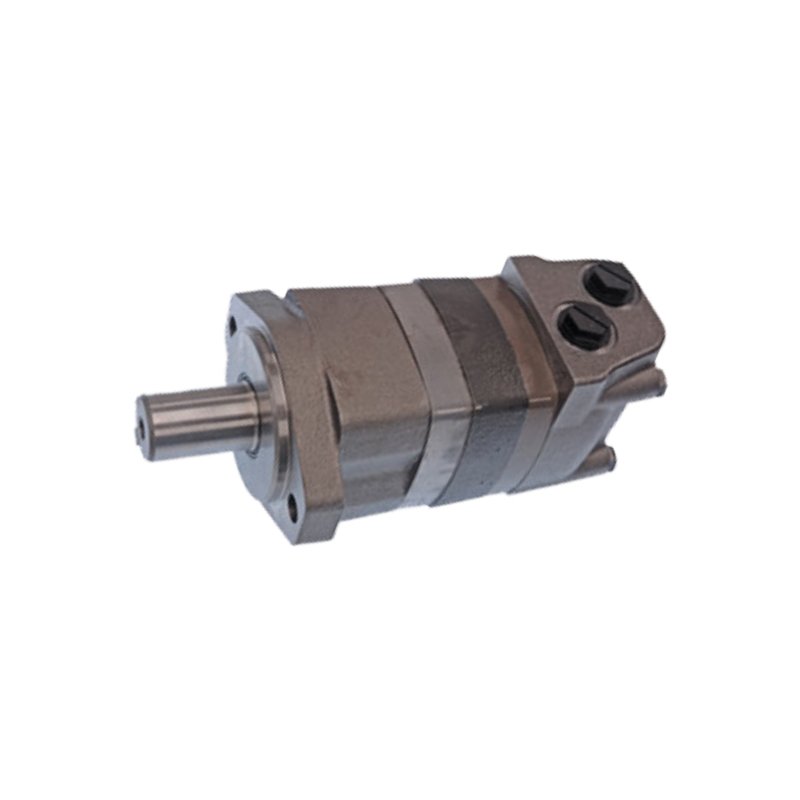

THM – BMK6/6K – Orbital Motors

THM BMK6/6K orbital hydraulic motors are available in sizes from 200 to 1000 cc/rev and handle maximum pressure up to 200 Bar. They use a Geroler gear set and disc distribution flow for smooth, reliable operation and high efficiency.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryOrbital Motors
Size1000200250315400500630800
Model6K 10006K 2006K 2506K 3156K 4006K 5006K 6306K 800BMK6-200BMK6-250BMK6-315BMK6-400BMK6-500BMK6-630BMK6-800

Variations

  • Size: 315, Model: bmk6-315
  • Size: 400, Model: bmk6-400
  • Size: 500, Model: bmk6-500
  • Size: 630, Model: bmk6-630
  • Size: 800, Model: bmk6-800

Overview

Orbital Hydraulic Motor
Sizes: 200 to 1000cc/rev
Max. Pressure up 200Bar

Key highlights

  1. Sizes: 200 to 1000 cc/rev
  2. Max. pressure up 200 Bar
  3. Geroler gear set for low pressure start-up
  4. Disc distribution flow compensates for high volume efficiency
  5. Shaft seal can bear high pressure of back
  6. Tapered roller bearings permit high axial and radial forces

Product details

Features:

  • Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
    operation and high efficiency.
  • Advanced design in disc distribution flow ,which can automatically compensate in operating with high volume efciency
    and long life ,provide smooth and reliable operation.
  • Shaft seal can bear high pressure of back .
  • The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities
    of high pressure and high torque in the wide of applications.
