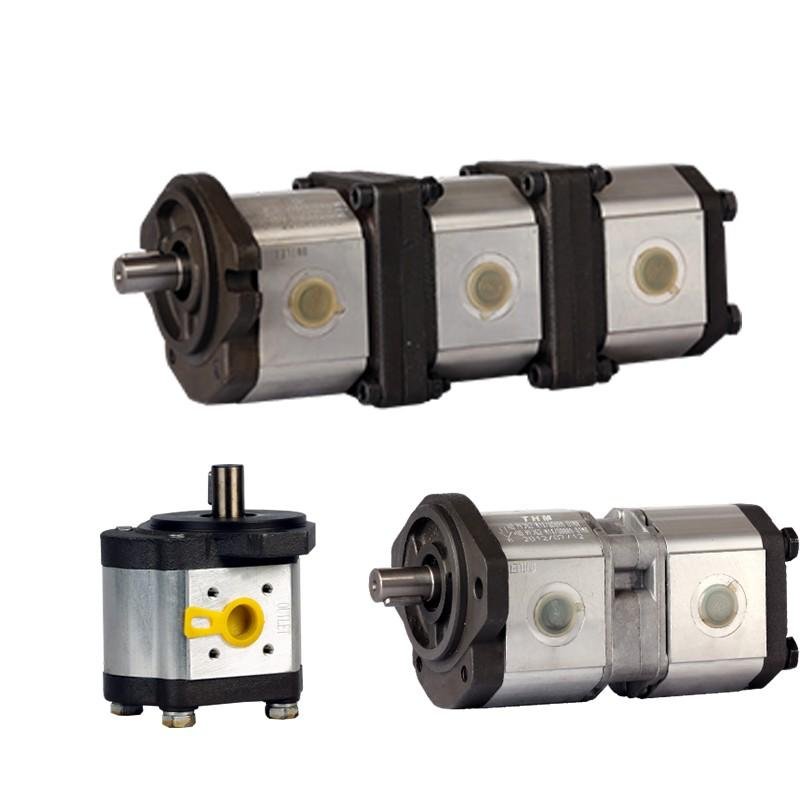

TPF2G2 Series-High Pressure External Gear Pump
THM

THM – TPF2G2 Series-High Pressure External Gear Pump

The THM TPF2G2 Series is a high-pressure external gear pump for hydraulic systems. It offers flow rates from 3 to 30 cc and a maximum operating pressure of 270 bar, with continuous operation up to 250 bar.

Enquire now WhatsApp Call
Download product brochure
Gear PumpsPumps

Specifications

BrandTHM
CategoryExternal Gear Pumps
Size003003-014003+014004006008008+008010010+010012012+012014016018020022022+004022+006022+008022+022023025026028030030+006030+010030+030032040045
ModelTPF2G2-M1X/003RA-01MBTPF2G2-M1X/008RA-01MR+/008RA-01MR+008RA-01MRTPF2G2-M1X/014RA-01MBTPF2G2-M1X/018 RA-01MRTPF2G2-M1X/020 RA-01MBTPF2G2-M1X/020 RA-01MRTPF2G2-M1X/022 RA-01MBTPF2G2-M1X/022 RA-01MRTPF2G2-M1X/022RA-01MR+22+8RA-01MRTPF2G2-M1X/025 RA-01MRTPF2G2-M1X/030 RA-01MBTPF2G2-M1X/030RA-01MR+TPF2G2-M1X/030RA-01MRTPF2G2-M1X/11-016RA-01MBTPF2G2-M3X-004-RD01MRTPF2G2-M3X-006-RD01MRTPF2G2-M3X-008-RD01MRTPF2G2-M3X-016-RD01MRTPF2G2-M3X-018-RD01MRTPF2G2-M3X-020-RD01MRTPF2G2-M3X-022-RD01MRTPF2G2-M3X-025-RD01MRTPF2G2-M3X-028-RD01MRTPF2G2-M3X-030-RD01MRTPF2G2-M3X/004 RA-01MBTPF2G2-M3X/012RA-01MBTPF2G2-M3X/020 RA-01MBTPF2G2-M3X/025 RA-01MBTPF2G2-M3X/028 RA-01MRTPF2G2-M3X/030 RA-01MBTPF2G2.6-M1X/023RA-01MRTPF2G2.6-M1X/030RA-01MRTPF2G2.6-M1X/032RA-01MRTPF2G2.6-M1X/040RA-01MRTPF2G2.6-M1X/045RA-01MRTPF2G2.6-M1X/26RA-01MRTPF2G2.6-M1X/28RA-01MRTPF2G2M1X/003RA-01MR+TPF2G2M1X/014RA-01MRTPF2G2M1X/016 RA-01MRTPF2G2M3X/003RA-01MRTPF2G2M3X/004RA-01MRTPF2G2M3X/006RA-01MRTPF2G2M3X/008RA-01MRTPF2G2M3X/008RA-01MR+TPF2G2M3X/008RN-01MDLTPF2G2M3X/010RA-01MRTPF2G2M3X/010RA-01MRK+TPF2G2M3X/010RN-01MDLTPF2G2M3X/012RA-01MRTPF2G2M3X/012RA-01MRK+TPF2G2M3X/012RN-01MDLTPF2G2M3X/014RA-01MRTPF2G2M3X/016LA-01MRTPF2G2M3X/016RA-01MRTPF2G2M3X/018LA-01MRTPF2G2M3X/018RA-01MRTPF2G2M3X/020RA-01MRTPF2G2M3X/022LA-01MRTPF2G2M3X/022RA-01MRTPF2G2M3X/022RA-01MRK+TPF2G2M3X/004RN-01MDLTPF2G2M3X/022RA-01MRK+TPF2G2M3X/006RN-01MDLTPF2G2M3X/025RA-01MRTPF2G2M3X/030LA-01MRTPF2G2M3X/030RA-01MRTPF2G2M3X/030RA-01MRK+TPF2G2M3X/006RN-01MDLTPF2G2M3X/030RA-01MRK+TPF2G2M3X/010RN-01MDLTPF2G2M3X/030RA-01MRK+TPF2G2M3X/030RN-01MDL

Overview

Series: 11 to 19 or 30 to 39

Flow: 3 to 30cc

Max. Operating pressure: 270 bar.

Key highlights

  1. Series 11 to 19 or 30 to 39
  2. Flow 3 to 30 cc
  3. Max operating pressure 270 bar
  4. Continuous operation up to 250 bar
  5. Unique sealing design
  6. G-BSP ports as per ISO228/1 standard

Typical applications

  • Construction
  • Agriculture
  • Manufacturing
  • Mobile and stationary equipment

Product details

Features:

  • Unique sealing design to operate up to 250 bar continuous.
  • Special alloy bush with unique lock design for maximum rigidity modified gear tooth to lower operating torque, 100% testing on computerized test bench.
  • Long service life, pump in”V” option available to operate up to – 10 degree C and 120 degree C, “G”-BSP ports as per ISO228/1 as standard and other threaded and flange port available
  • New principle of hydraulic gap compensation.

THM – TPF2G2 Series High-Pressure External Gear Pump

The THM – TPF2G2 Series High-Pressure External Gear Pump is a reliable hydraulic pump solution for high performance hydraulic systems. Designed to the highest standards by THM Huade Hydraulics, this pump is extremely robust, highly efficient and versatile.

This is a hydraulic gear pump designed to withstand high pressure and therefore suitable for use in most industries. The product is easily installable in different types of machinery configurations and the product is durably built to offer long service. The external gear pump mechanism makes the working smooth and steady and prevents the system from getting worn out frequently.

The TPF2G2 Series Gear Pumps are universal and can be applied in any field such as construction, agriculture and manufacturing. These hydraulic pumps are of high quality, and as such, they are energy efficient, resulting to low operational cost, but high productivity.

Both in mobile and stationary equipment applications, the THM – TPF2G2 Series External Gear Pumps provide high performance and durability. This series has characteristic features such as compact dimensions, high power density, and increased pressure performance, which meets the requirements of hydraulic systems.

To get the best gear pumps that are reliable and efficient, contact THM Huade Hydraulics for solutions that meets your industries.
