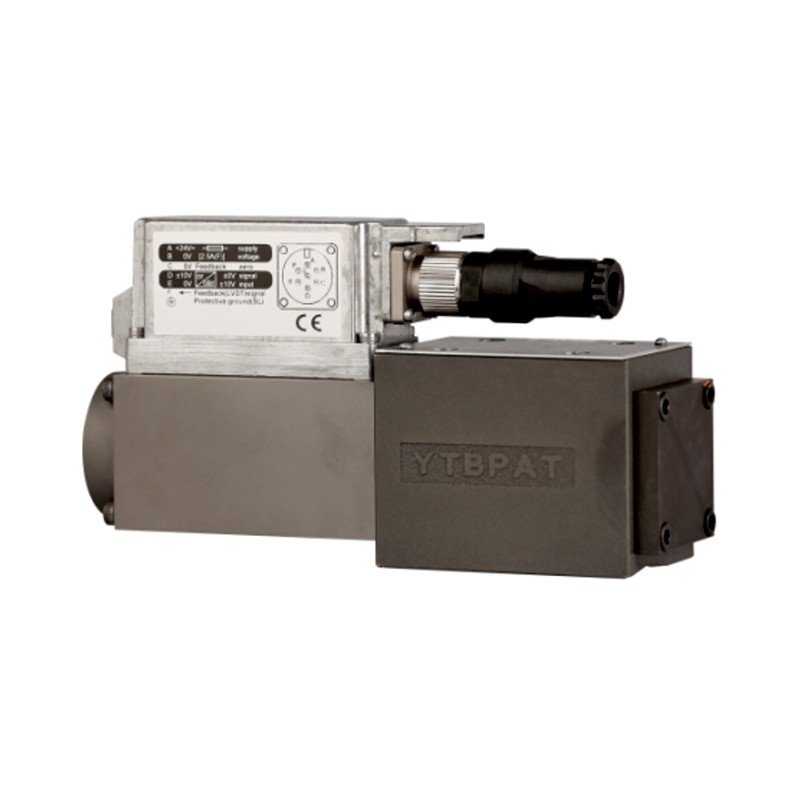

THM – 4WRPEH10-Servo Solenoid Proportional Valve

Name: THM – 4WRPEH10-Servo Solenoid Proportional Valve
Brand: THM

The THM 4WRPEH10 is a direct operated servo solenoid direction control valve with integrated position feedback and onboard electronics. It provides precise electro-hydraulic control with a maximum working pressure of 315 bar and a nominal flow rate of 100 L/min.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Proportional Valves
Size	10
Model	4WRPEH 10 C3 B100L 2X/G24K0/A1M

Overview

Upgrade your system with the THM Servo Solenoid Proportional Valve. Offers precise control & high performance. Discover reliable hydraulic solutions now.

Max. working Pressure : 315 bar
Direct operated servo solenoid direction control valve ,
with integrated position feedback and built in Ampere
Unit series 2X
Max. working Pressure : 315 bar
Nominal ow rate 100L/min, max.( p = 70 bar)

Key highlights

Direct operated servo solenoid direction control valve
Max. working pressure: 315 bar
Nominal flow rate 100 L/min (p = 70 bar)
Integrated position feedback and onboard electronics (OBE)
Electrical connection 6P+PE
Signal input: interface A1 ±10V or F1 4…20mA (Rsh = 200 )

Typical applications

Electro-hydraulic controls in production systems
Electro-hydraulic controls in testing systems

Product details

Features:

With control spool and sleeve in servo quality Operated on one side, 4/4-fail-safe position in switched off state.
Electric position feedback and integrated.
Electronics (OBE), calibrated in the factory.
Electrical connection 6P+PE
Signal input differential amplifier with interface
“A1”±10V or interface “F1” 4…..20mA(Rsh = 200 )
Use for electro-hydraulic controls in production and testing systems.
