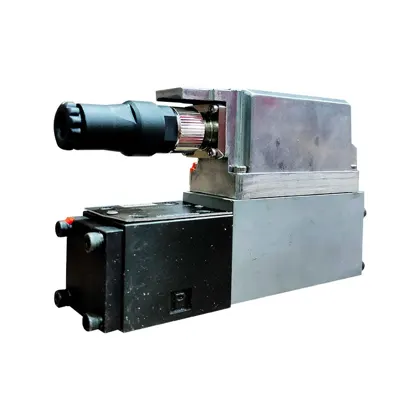

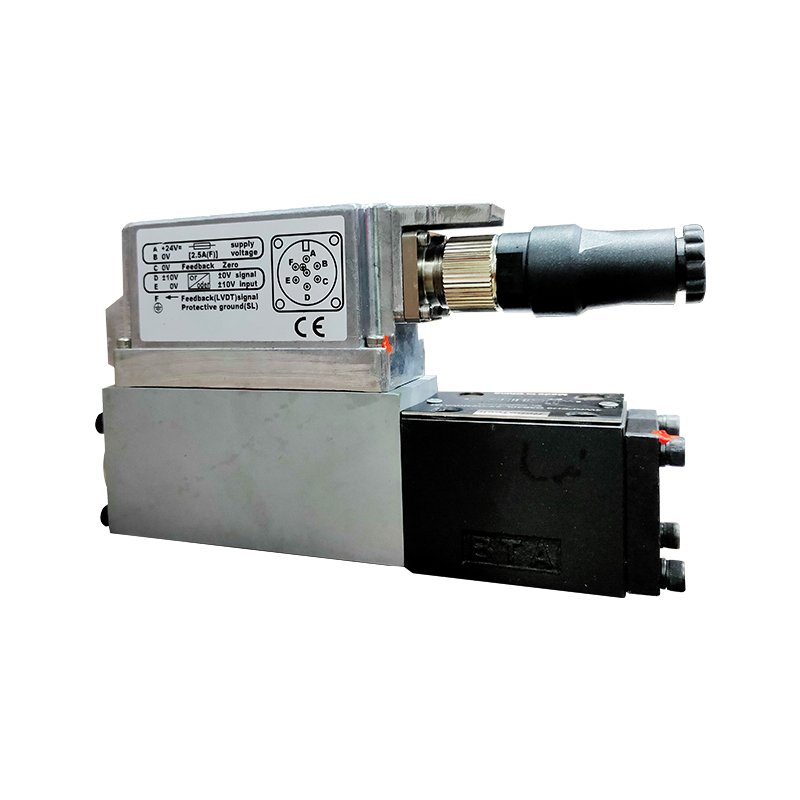

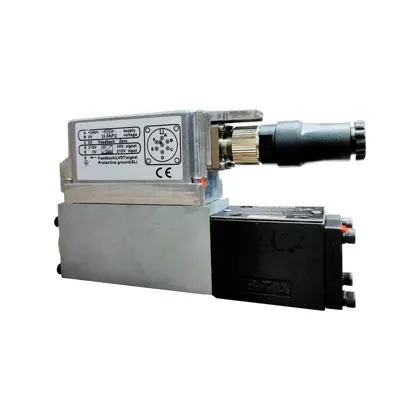

THM – 4WRPEH6 Servo Solenoid – Proportional Valve

Name: THM – 4WRPEH6 Servo Solenoid – Proportional Valve
Brand: THM

THM 4WRPEH6 servo solenoid proportional valve provides precise flow control with a control spool and sleeve in servo quality, operated on one side with a 4/4 fail-safe position when switched off.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Proportional Valves
Size	6
Model	4WRPEH 6 C3 B12L-2X/G24 K0/A1M4WRPEH 6 C3 B24L 2X/G24 K0/A1M4WRPEH 6 C4 B24L 2X/G24 K0/A1M4WRPEH 6 C4 B40L-2X/G24K0/A1M4WRPEH6C3B40L-2X/G24K0/A1M4WRPEH6C4B04L-2X/G24K0/A1M4WRPEH6C4B12L-2X/G24K0/A1M

Overview

THM – 4WRPEH6 Servo Solenoid Proportional Valve offers precise flow control, max pressure 315 bar, ideal for demanding hydraulics. At Thm Hydraulics

Nominal flow rate 40lpm and 100lpm 4WRPEH6
Max. working Pressure : 315 bar

Key highlights

Nominal flow rate 40lpm and 100lpm
Max. working Pressure : 315 bar
With control spool and sleeve in servo quality
Operated on one side, 4/4-fail-safe position in switched off state
Electric position feedback and integrated electronics (OBE)
Electrical connection 6P+PE

Typical applications

Electro-hydraulic controls in production and testing system

Product details

Features:

With control spool and sleeve in servo quality Operated on one side, 4/4-fail-safe position in switched off state.
Electric position feedback and integrated electronics (OBE).
Calibrated in the factory.
Electrical connection 6P+PE.
Signal input differential amplifier with interface “A1”±10V or interface “F1” 4…..20mA(Rsh = 200 ).
Use for electro-hydraulic controls in production and testing system.
