DBW52
THM

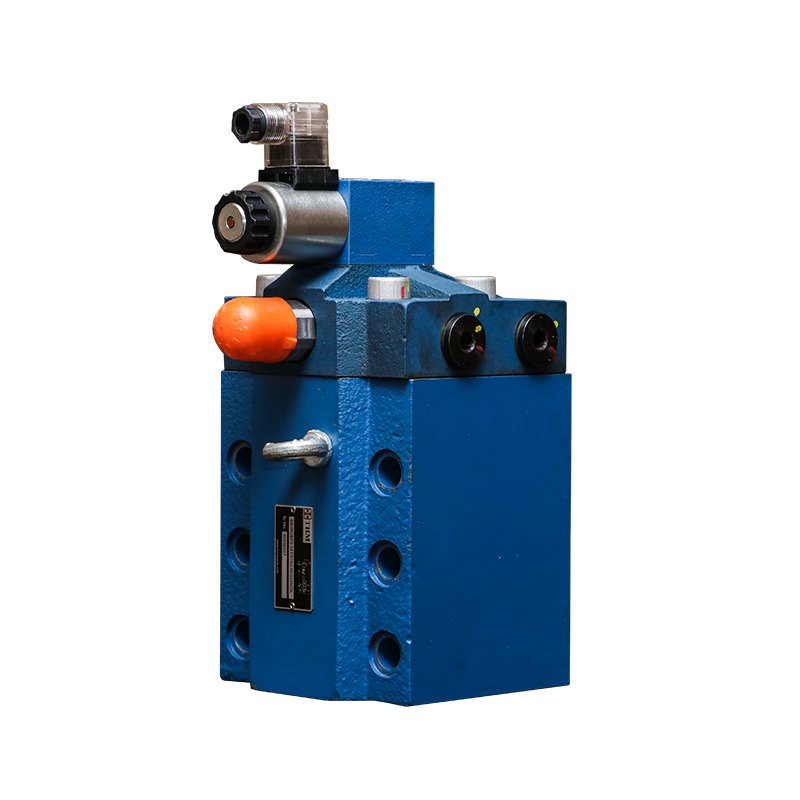

THM – DBW52 Pilot operated – Pressure Valves

THM DBW52 pilot operated pressure valves provide precise pressure regulation for hydraulic systems with pressure adjustment options. They are available for flange connection or sub-plate mounting.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryPressure Valves
ModelTHM DBW52-P-2-3X-31.5-U-6EG24Z5L-V

Overview

Optimize hydraulic systems with THM – DBW52 Pilot Operated Pressure Valves, designed for efficient and precise pressure regulation. Available at Thm Hydraulics.

  • Size 52
  • Max. pressure up to 315 bar
  • Max. flow up to 2000 L/min

Key highlights

  1. Size 52
  2. Max. pressure up to 315 bar
  3. Max. flow up to 2000 L/min
  4. For flange connection or sub-plate mounting
  5. Adjustable bolt with protective cap or adjustable handle
  6. Poppet or spool main valve version optional

Product details

Max. pressure up to 315 bar

Features:

  • For flange connection.
  • For sub-plate mounting.
  • 2 pressure adjustment elements:
  • – Adjustable bolt with protective cap
  • – Adjustable handle
  • 4 ratings pressure: unloading operation via a built-on directional
  • solenoid valve
  • Pilot oil return, internal or external
  • Remote control port, optional
  • Main valve: poppet or spool version, optional
