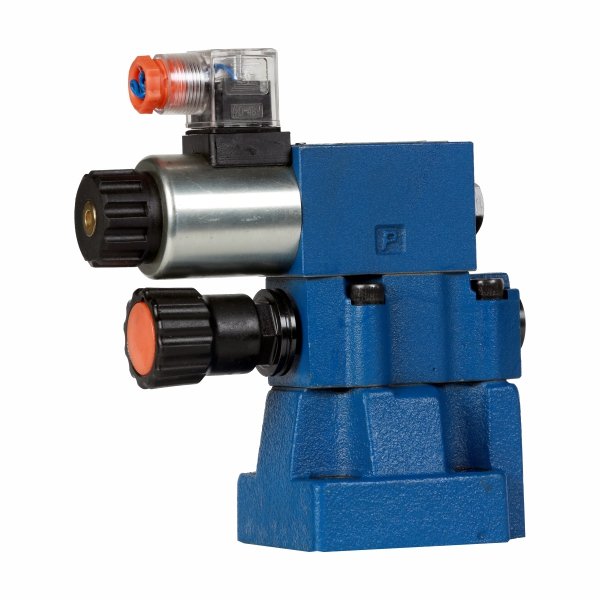

THM – DB/DBW – Pressure Relief valve

The THM DB/DBW is a pilot operated pressure relief valve for safe hydraulic operations, available in sizes 10 to 30 with pressure control up to 350 bar. It offers threaded in-line or subplate mounting and multiple pressure adjustment options.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryPressure Valves
ModelTHM DB10-1-51T/100THM DB10-1-51T/200THM DB10-1-51T/350THM DB10-1-51T/350 SPRINGTHM DB10-1-51T/50THM DB20-1-51T/100THM DB20-1-51T/200THM DB20-1-51T/350THM DB20K2-1X/315THM DB30-1-51T/100THM DB30-1-51T/200THM DB30-1-51T/350

Overview

Ensure safe hydraulic operations with THM – DB/DBW Pressure Relief Valve from Thm Hydraulics. Sizes 10 to 30, delivering consistent pressure control.

  • Sizes 10 to 30
  • Max. Pressure upto 350bar
  • Max. Flow upto 650 L/min.

Key highlights

  1. Pilot operated pressure relief valve
  2. Sizes 10 to 30
  3. Max. pressure up to 350 bar
  4. Max. flow up to 650 L/min
  5. Five pressure ranges available
  6. Screw adjustment, hand knob, or key lock options

Product details

Features:

  • Pilot operated pressure relief valve
  • Threaded in-line, or subplate mounting
  • For subplate mounting:
  • Mounts on standard ISO 6264-06,08, or10, interface Porting pattern to DIN 24 340 form E, ISO 6264 and CETOP–RP 121 H,
  • Five pressure ranges available, to 350 bar
  • Four pressure adjustment options:
  • Screw adjustment with locknut and protective cap
  • Hand knob
  • Hand knob with scale
  • Key lock hand knob with scale
  • Optional solenoid venting with directional control valve (Model 3 WE 6)
  • Optional time delay available for unloading Model DBW
