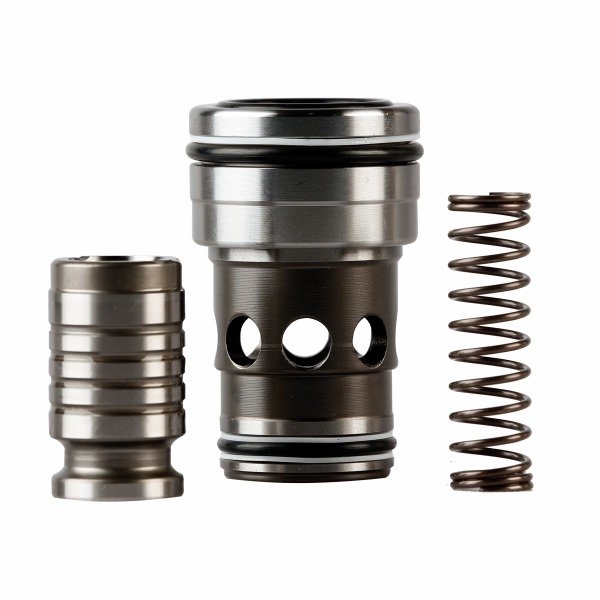

THM LC pressure cartridge
THM

THM – LC 2-way cartridge valves – Pressure valves

THM LC 2-way cartridge valves are pilot operated poppet or spool valves for pressure control, inserted in DIN 24 342 cavities and sealed by control covers. Combining cartridge valves with control covers enables various pressure functions, with pilot valves for manual or electrical proportional control.

Enquire now WhatsApp Call
Download product brochure
pressure valves

Specifications

BrandTHM
CategoryPressure Valves

Overview

Features:

  • Size 16 to 100
  • Max. pressure up to 420 bar
  • Max. flow up to 7000L/min

Key highlights

  1. Sizes 16 to 100
  2. Max pressure up to 420 bar
  3. Max flow up to 7000 L/min
  4. Cartridge per DIN 24 342
  5. Pilot valve interface DIN 24 340 [D03, D05]
  6. Series 7X and Series 6X available

Product details

Function Description

2-way cartridge valves for pressure control are pilot operated poppet or spool valves. The main component designed as a
cartridge valve (1) is inserted in a cavity bore corresponding to DIN 24 342 and sealed by control cover (2).
General
By combining the cartridge valve with the control covers, various pressure functions can be achieved.
The pilot valve (4) for either manual or electrical proportional pressure control, is integrated into the control cover (2) or
mounted onto the control cover as a pilot valve with interface connections to DIN 24 340[D03, D05] (2).

Series 7X

  • Size 16
  • Size 25
  • Size 32
  • Size 40
  • Size 50
  • Size 63

Series 6X

  • Size 80
  • Size 100
