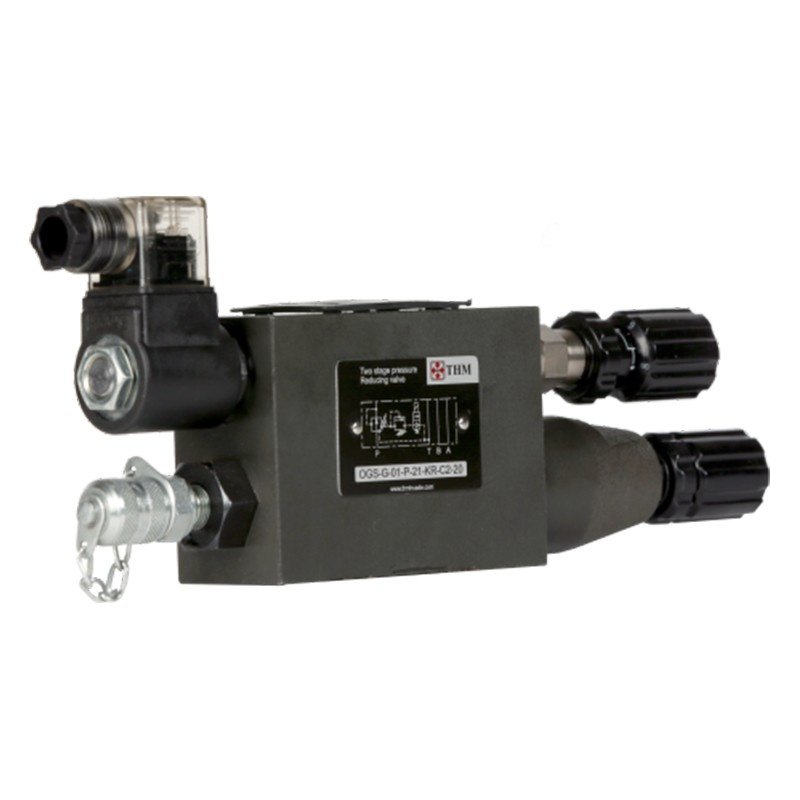

THM – OGS-G Two-Pressure Reducing Modular Valve – Pressure valves

THM OGS-G two-pressure reducing modular valve controls pressure by switching low pressure to secondary pressure (high pressure, low pressure) and maintains reduced secondary pressure constant even when primary circuit pressure changes.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryPressure Valves

Overview

Size: 1/8

Max Operating Pressure 5 Bar to 140 Bar Low and High Side.

Key highlights

  1. Size: 1/8
  2. Max Operating Pressure 5 Bar to 140 Bar Low and High Side
  3. Maximum Operating Pressure: 70Bar / 210Bar
  4. Maintains reduced secondary pressure at a constant level
  5. Operates even when pressure changes in the primary main circuit

Product details

Max Operating Pressure 5 Bar to 140 Bar Low and High Side.

  • Features:
  • When the pressure in part of the circuit is lower than the main circuit, this modular valve controls pressure by switching the low pressure to secondary pressure (high pressure, low pressure).
  • Even when pressure changes in the primary main circuit.
  • The reduced secondary pressure is maintained at a constant level.
  • Maximum Operating Pressure: 70Bar / 210Bar
