THM

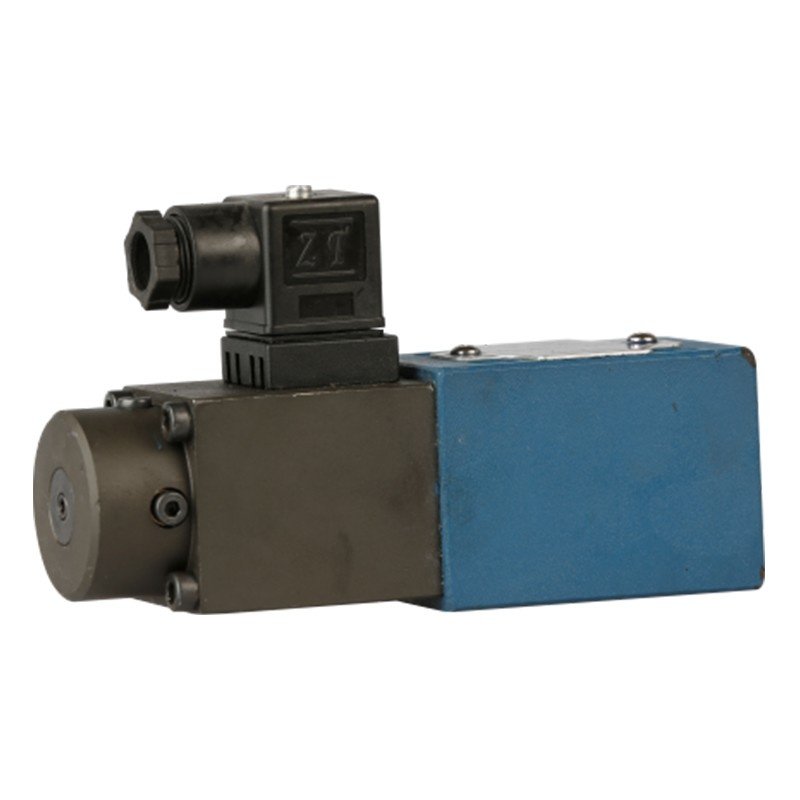

THM – DBETX- Proportional pressure relief valve

Name: THM – DBETX- Proportional pressure relief valve
Brand: THM

The THM DBETX is a direct operated proportional pressure relief valve for limiting system pressure, adjustable via solenoid current. It mounts on a subplate with mounting hole configuration to ISO4401 and uses external trigger electronics.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Proportional Valves
Size	180250
Model	DBETX-10/180 G24-8NZ4MDBETX-10/250 G24-8NZ4M

Overview

Optimize your hydraulic system with the THM DBETX Proportional Pressure Relief Valve. Ensures accurate pressure regulation for enhanced performance and reliability.

Nominal flow 1 lpm
NG6 Max. Pressure 315 bar.

Key highlights

Direct operated valve for limiting system pressure
Adjustable by means of the solenoid current
NG6, max. pressure 315 bar
Nominal flow 1 lpm
For subplate attachment to ISO4401
External trigger electronics with ramps and value calibration

Product details

Features :

Direct operated valves for the limiting system pressure.
Adjustable by means of the solenoid current see performance curve.
Technical data and selected valves electronics.
Pressure limitation to a safe level even with electric failure (solenoid current l > lmax.)
For subplate attachment, mounting hole configuration to ISO4401
External trigger electronics with ramps and value.
Calibration (order separately).
