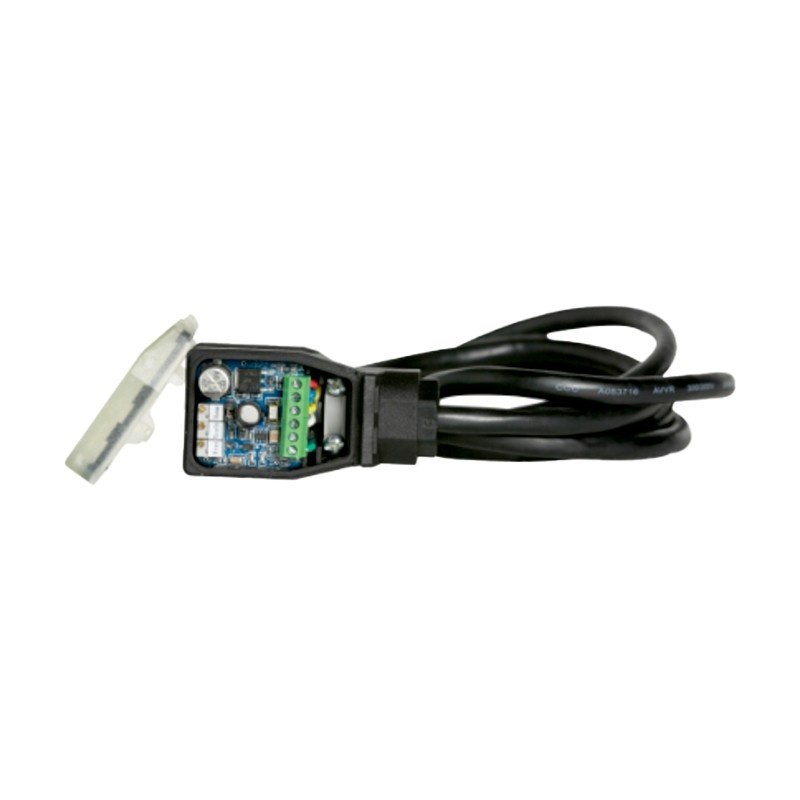

THM – E-510 Plug-in Amplifier – Proportional Valve

Name: THM – E-510 Plug-in Amplifier – Proportional Valve
Brand: THM

The THM E-510 plug-in amplifier enhances proportional valve performance with precise control for complex hydraulic systems. It uses an STM microprocessor for digital amplification and PWM negative current feedback.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Proportional Valves
Size	510
Model	E510-A1S-L4/A1E510-A1S-U0/A1

Overview

Enhance proportional valve performance with the THM E-510 Plug-in Amplifier. Provides precise control and reliable operation in complex hydraulic systems.

E-510 Plug-in Proportional Valve Amplifier..

Features:

STM Microprocessor Chip.
Embedded.
Digital Amplifier and Software with Intellectual.
Property, PWM negative current feedback.

Key highlights

STM Microprocessor Chip
PWM negative current feedback
Hirshmann DIN plug shell with IP65 protection
Maximum output current 3.3A with current limiting protection
Inputs: 0~10V, 0~20mA, 4~20mA or on-off
Built-in potentiometers for bias adjustment

Product details

Features:

STM Microprocessor Chip.
Embedded.
Digital Amplifier and Software with Intellectual.
Property, PWM negative current feedback.
Shell is the standard Hirshmann DIN plug with convenient shape, less heat generated and IP65 protection. The maximum output current is 3.3A with current limiting protection.
Two LED indicators of input signal and output current status. Preset PWM frequency parameters.
The built-in potentiometers can change bias.
Ramp and scale parameters.
The inputs are 0~10V, 0~20mA, 4~20mA or on-off input.
Provide many options such as enable control.
Logic control.
power limitation and so on.
