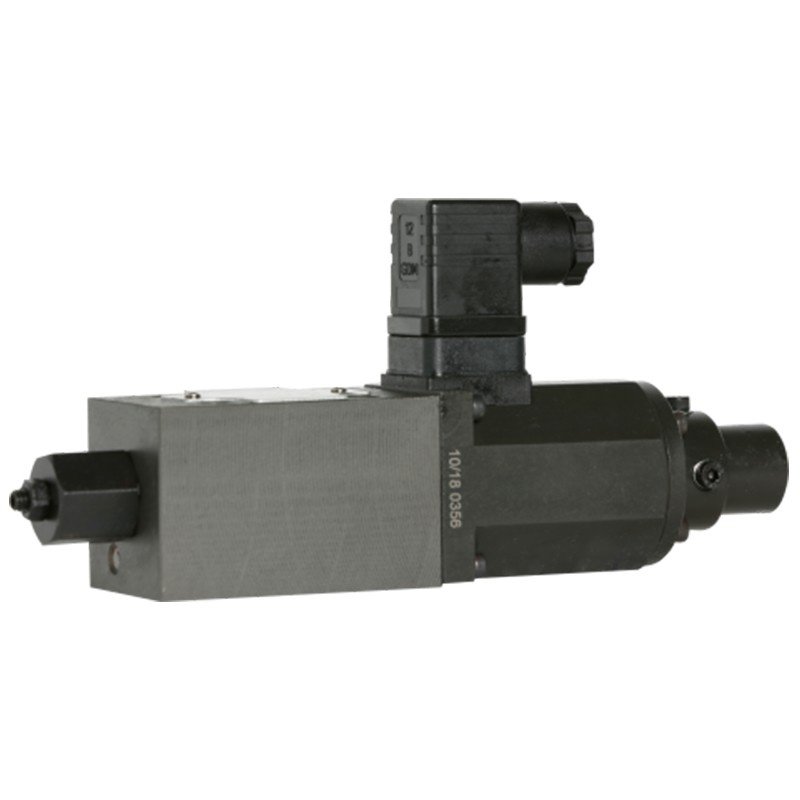

THM – EDG – Proportional Pressure Relief And Flow Valves Pilot Operated

Name: THM – EDG – Proportional Pressure Relief And Flow Valves Pilot Operated
Brand: THM

The EDG pilot-operated proportional pressure relief and flow valve consists of a small DC solenoid and a direct-acting relief valve. It controls pressure in proportion to input current and is used with an applicable power amplifier.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Proportional Valves
Size	01
Model	EDG-01-H-1-P10-T10-20-VEDG-01-V-H-P-T13-10

Overview

THM – EDG Proportional Pressure Relief Valve, pilot-operated, with up to 245 bar pressure and 2 l/min flow, ensures precision in hydraulic systems.

Pressure up to 245 bar
Flow up to 2 l/min

Key highlights

Pressure up to 245 bar
Flow up to 2 l/min
Consists of small DC solenoid and direct-acting relief valve
Flow adjustment range: 60 ~120 L/min
Used with applicable power amplifier
Size: 01

Typical applications

Low flow rate hydraulic systems
Pilot valve for proportional electro-hydraulic control valves

Product details

Features:

This valve consists of a small DC solenoid and a direct-acting relief valve. It serves as a pilot valve for a low ow rate hydraulic system or a proportional electro-hydraulic control valve and controls the pressure in proportion to the input current.
Note that this valve is used in conjuction with the applicable power amplier.
Flow adjustment range: 60 ~120 L/min
