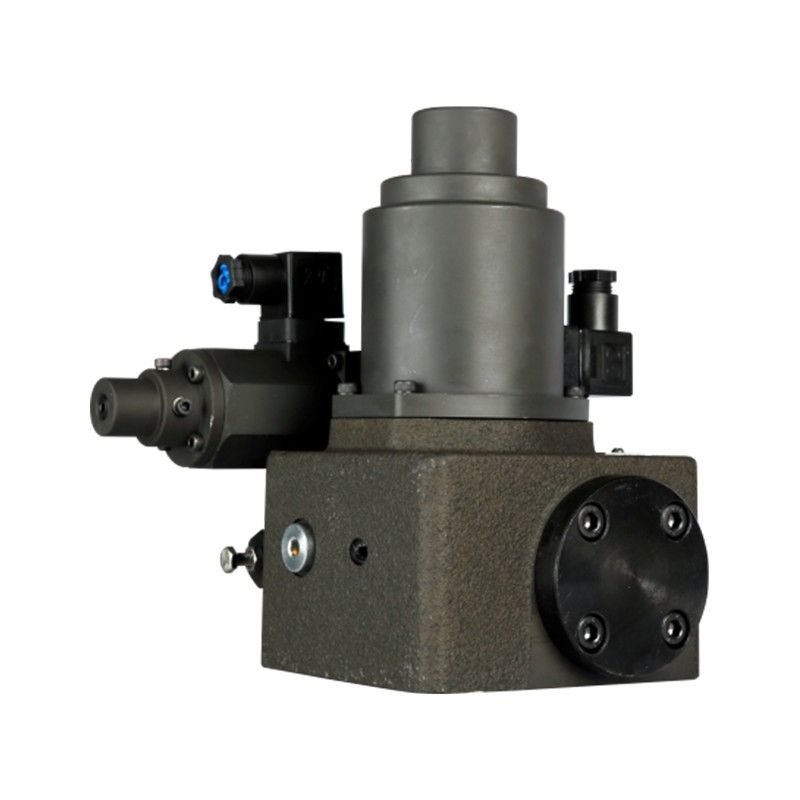

THM – EFBG – Proportional Pressure Relief And Flow Valves Pilot Operated

Name: THM – EFBG – Proportional Pressure Relief And Flow Valves Pilot Operated
Brand: THM

THM EFBG proportional pressure relief and flow valves are pilot operated valves using two electrical loops to control pressure and flow. They provide energy-saving operation with low power losses.

Enquire now WhatsApp Call

Download product brochure

Specifications

Brand	THM
Category	Proportional Valves
Size	02030610
Model	TEFBG-02-60-H-21-HTEFBG-03-125-H-21-HTEFBG-06-250-H-21-HTEFBG-10-H-500

Overview

This proportional valve adopts two electrical loops to control pressure & flow of hydraulic system respectively. It is an high efficiency & energy-saving valve.

Pilot Operated Type EFBG…
Sizes : 02, 03, 06, 10
Max flow: 60, 160, 250, 500 L/min
Max. pressure: 315 Bar (245 Bar for EFBG10)

Key highlights

Pilot operated type EFBG
Sizes 02, 03, 06, 10
Maximum flow 60, 160, 250, 500 L/min
Maximum pressure 315 bar (245 bar for EFBG10)
Pressure and flow proportional to input signal
Low power losses and high overall efficiency

Typical applications

Hydraulic system pressure and flow control
Actuator and drive control

Product details

Features:

Pressure and flow is proportional to the input signal of the proportional solenoids.
This proportional valve adopts two electrical loops to control pressure and flow of hydraulic system respectively.
The power losses is very low and overall efficiency high, hence reduced power consumption.
Using very small pressure drop to track load pressure and control the pump pressure.
This relief and flow control valve is energy saving type that provide flow and pressure as per programmed for actuator / drive.
It is an high efficiency and energy-saving valve.
