THM – 4WRKE – Proportional Valves

Name: THM – 4WRKE – Proportional Valves
Brand: THM

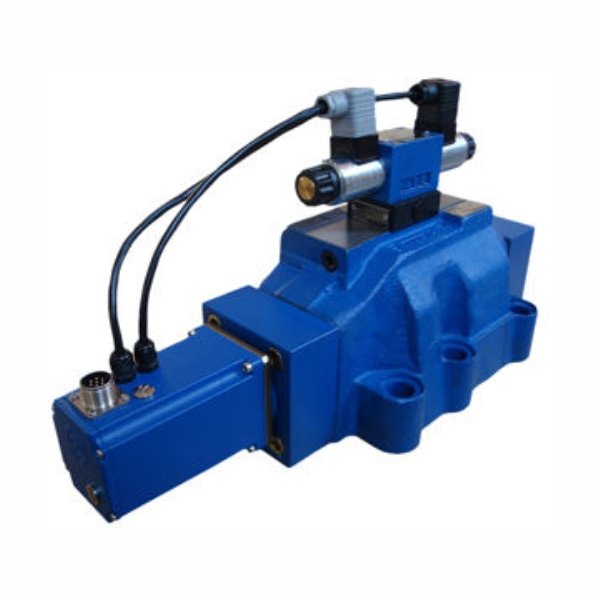

The THM 4WRKE is a pilot operated proportional directional valve with electrical position feedback on the main spool and integrated control electronics, used to control flow and direction.

Enquire now WhatsApp Call

Download product brochure

4WRKE hydraulic valves Proportional Valves

Specifications

Brand	THM
Category	Proportional Valves
Model	THM 4WRKE10V1-50L-3X/6EG24EK31/A1D3MTHM 4WRKE10V1A-50L-3X/6EG24EK31/A1D3VTHM 4WRKE16E200L-3X/6EG24EK31/A5D3MTHM 4WRKE16W200-3X/6EG24K31/A5D3THM 4WRKE27E500L-35/6EG24EK31/A1D3MTHM 4WRKE27W500P-3X/6EG24K31/A5D3M-709

Overview

With electrical position feedback and built-in amplifier (OBE)
Size 10 … 32
Component series 3X
Maximum working pressure 350 bar
Rated flow 25 … 600 l/min

Key highlights

Pilot operated proportional directional valve
Electrical position feedback on main spool
Integrated control electronics (built-in amplifier, OBE)
Sizes 10 to 32
Component series 3X
Maximum working pressure 350 bar, rated flow 25 to 600 l/min

Product details

Features:

Pilot operated proportional directional valve, main spool with electrical position feedback.
Bottom plate installation: installation face with ISO4401 (Size 10 to 32)
Used to control the flow and direction.
Electrical position feedback on main spool.
Spring centered main spool.
Integrated control electronics.
Threaded type replaceable solenoid coil.
Actuation via proportional solenoids stage.
