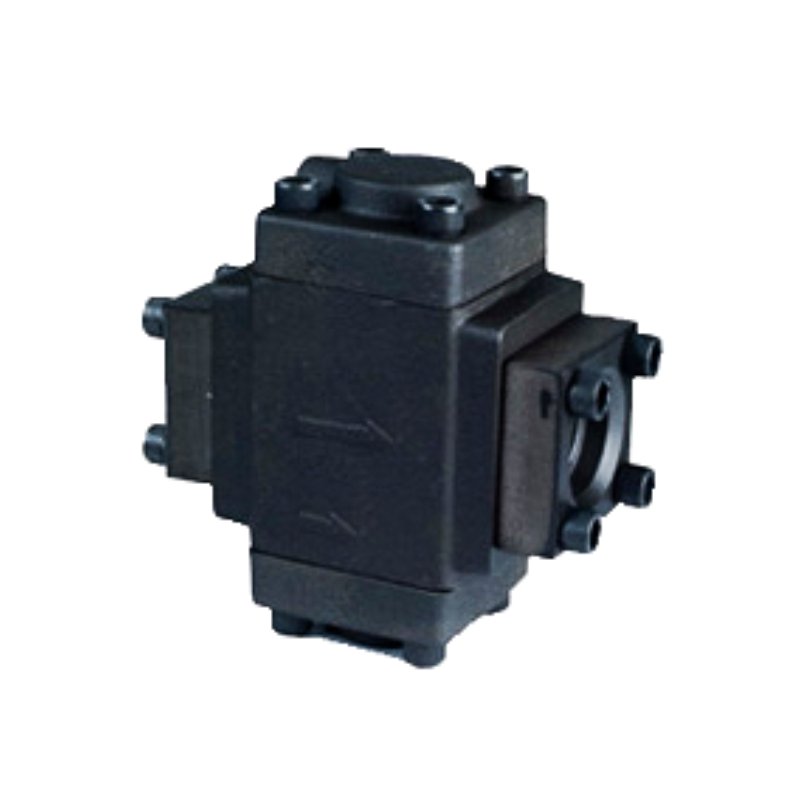

THM – CPDT/CPDG/CPDF – Pilot operated check valve

The THM CPDT/CPDG/CPDF is a pilot operated check valve that allows flow in one direction and prevents reverse flow unless pilot pressure opens the valve. It can maintain internal system pressure when closed.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryCheck Valves

Overview

Pilot operated check valve
Sizes: CPDT: 04, 06, 10
CPDG: 03, 06, 10
CPDF: 10, 16
Max. pressure: 250 kgf/cm²
Rated flow: 50, 125, 315, 500 l/min

Key highlights

  1. Sizes: CPDT: 04, 06, 10; CPDG: 03, 06, 10; CPDF: 10, 16
  2. Max. pressure: 250 kgf/cm²
  3. Rated flow: 50, 125, 315, 500 l/min
  4. Allows free flow in one direction and prevents reverse flow
  5. Pilot pressure opens valve for free reverse flow
  6. Two-steps design enables operation via lower pressure and reduces noise

Product details

Features:

  • Principles of hydraulics pilot controlled check valve allows flow in one direction and prevents flow in the reverse direction unless cracking pressure is required to open the valve so then it allow the flow freely reverse. If the cracking pressure is closed, then the internal pressure in the system could be maintained.
  • Two-steps design of pilot controlled check valves has been interchanged which is able to operate via lower pressure so then it reduces the noisy occurred by impulse so the quality is more advanced.
  • Pilot Operated Check Valve allow free flow in one direction and prevent reverse flow in the reverse direction until operated by a pilot pressure to allow free reverse flow.
  • Pilot Operated Check Valve of hydraulic works specified cracking pressure is required to open the valve to allow free flow direction.
