MPW Series Modular Valves
1 / 2
THM

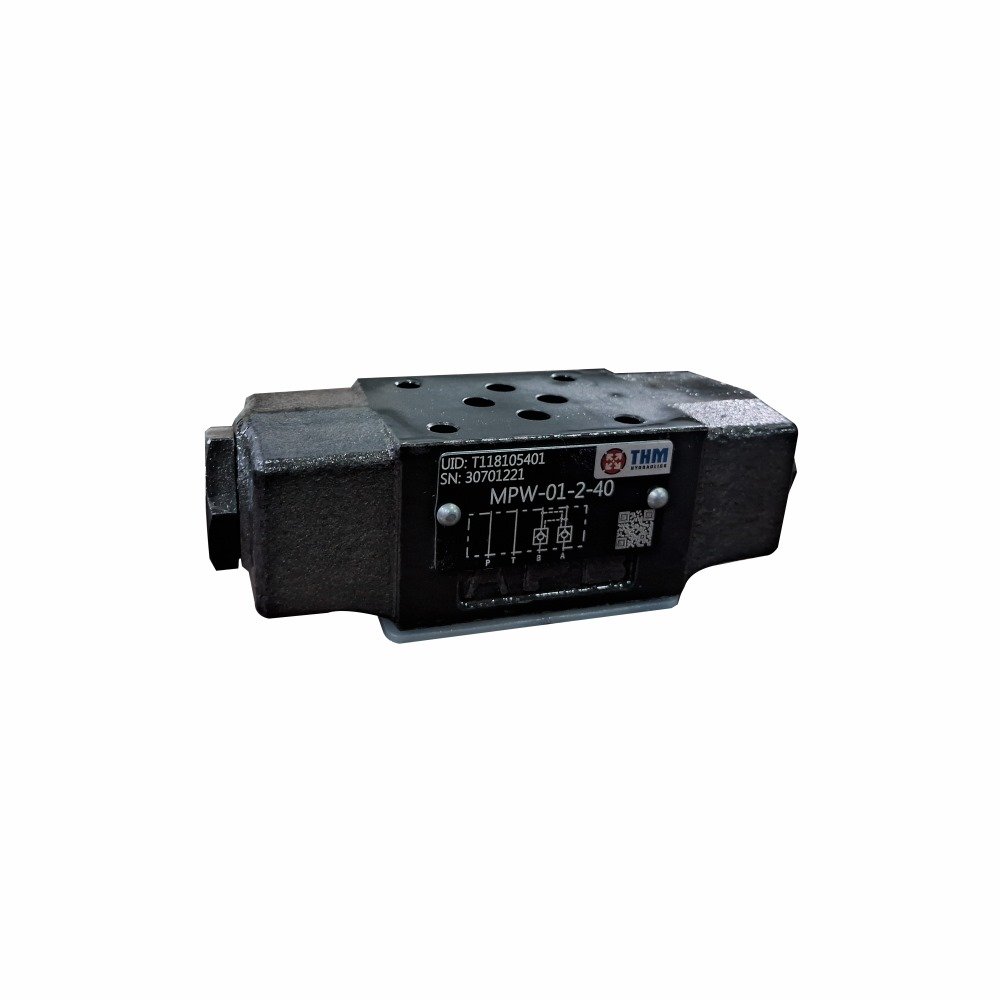

THM – MPW Series – Pilot Operated Check Modular Valves

The THM MPW Series Pilot Operated Check Modular Valves allow free flow in one direction and prevent reverse flow in hydraulic systems. They are NG6-sized with a cracking pressure of 2–4 Bar.

Enquire now WhatsApp Call
Download product brochure
MPW Series Modular Valves

Specifications

BrandTHM
CategoryCheck Valves

Overview

Boost system safety with THM MPW Series Modular Valves. Compact NG6 design ensures smooth operation and long-lasting hydraulic performance.

  • Size: NG6
  • Cracking pressure: 2 ~ 4 Bar

Key highlights

  1. Size: NG6
  2. Cracking pressure: 2 ~ 4 Bar
  3. Pilot operated design for controlled backflow prevention
  4. Small modular structure for easy installation
  5. Standards-conformant with NG6

Typical applications

  • Hydraulic systems needing backflow prevention
  • Construction machinery, mobile equipment and industrial machinery
  • Complex hydraulic systems with pumps, motors and cylinder circuits
  • Safety critical systems where reverse flow is damaging

Product details

THM – MPW Series – Pilot Operated Check Modular Valves

The MPW Series Modular Valves should enable the free circulation in one direction and prevent reversal in hydraulic systems. These are NG6-sized with a cracking pressure of 2-4 Bar and are accurate in control and can be relied on in industrial and mobile hydraulic systems.

Features of MPW Series Modular Valves

Design Pilot operated design with smooth and controlled backflow prevention.
Small modular structure to be installed and integrated.
Low operation pressure (2-4 Bar) to operate accurately.
Strong constructions guarantee great working life.
Standards-conformant with NG6.

Applications of MPW Series

Hydraulic systems that need to be backflow-preventing and controlled-release.
Construction machinery, mobile equipment and industrial machinery.
Complex hydraulic systems consist of pumps, motors, and cylinder circuits.
Systems that are safety critical and the reverse flow would lead to a damaging effect.
Reverse flow may be detrimental in safety critical systems.

Advantages Pilot Operated Check Modular Valves

Prevents backflow which makes hydraulic circuits safe.
Minimized pressure drop fluid flow.
Small size increases integration and stacking.
Enhances system efficiency and protects system components.

Why Choose THM Huade Valves?

Trusted hydraulic parts.
Extrinsic performance and high-level reliability in various industries.
Universal hydraulic modular valves.
Great technical support and after sales services.
