CRT/CRG
THM

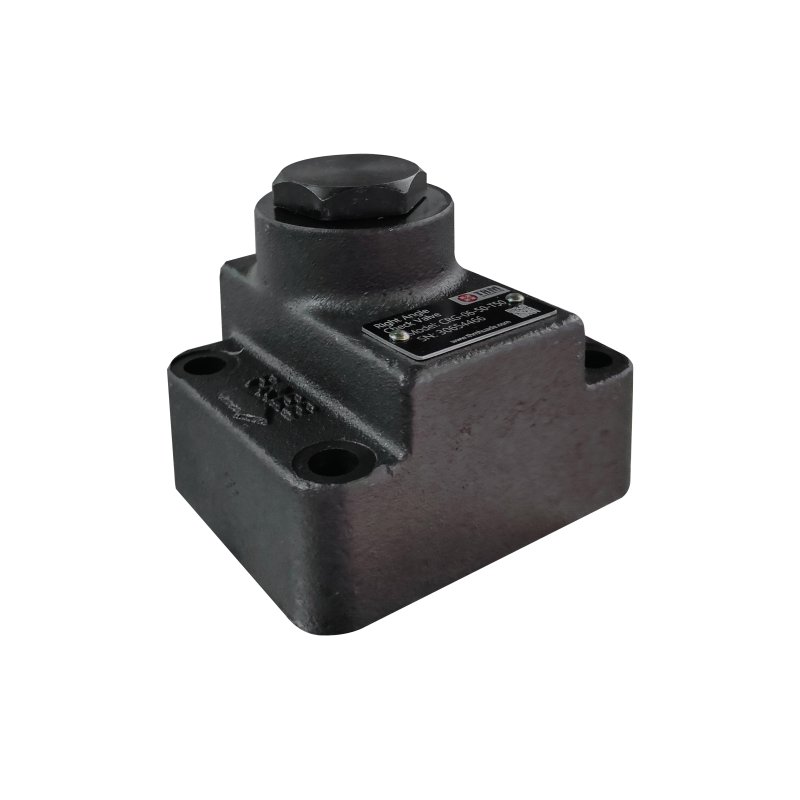

THM – CRT/CRG – Right angle check valves

These right angle check valves allow free flow in one direction and prevent reverse flow. They are available in sizes 03, 06, and 10 with maximum flows of 40, 125, and 250 l/min and a maximum working pressure of 250 Bar.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryCheck Valves

Overview

Right Angle Check Valves
Sizes: 03, 06, 10
Max. flow: 40, 125, 250 l/min
Max. working pressure: 250 Bar

Key highlights

  1. Sizes: 03, 06, 10
  2. Max. flow: 40, 125, 250 l/min
  3. Max. working pressure: 250 Bar
  4. Allows free flow in one direction
  5. Prevents flow in the reverse direction

Product details

Introduction:

These valves allow free flow in one direction and prevent flow in the reverse direction. Cracking pressure specified is the
pressure required to open the valve and allow free flow.
