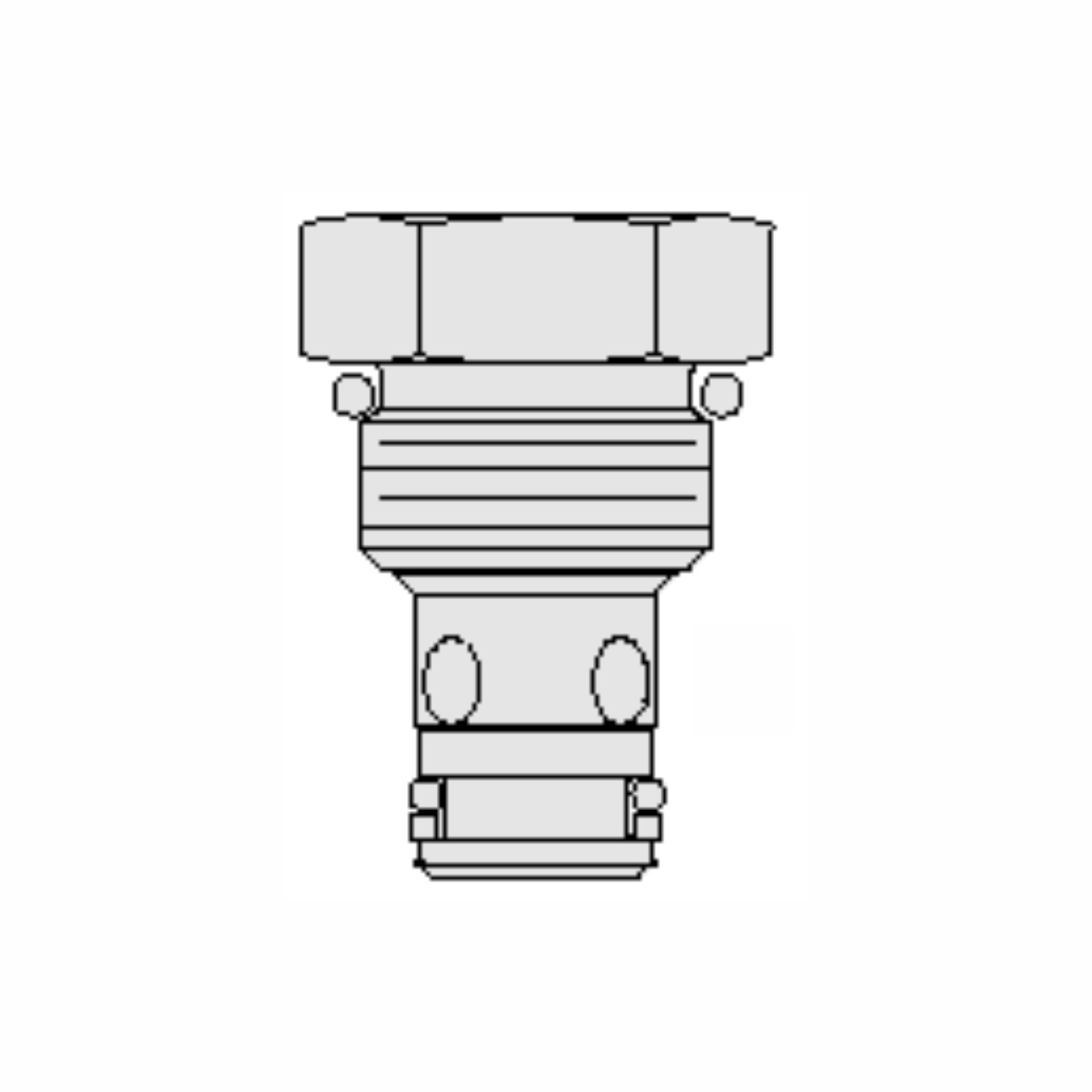

THM – CV08 – Direct Acting Ball Type Cartridge (Check Valve)

THM CV08 is a direct acting ball type cartridge check valve. It has a max operating pressure of 315 bar and rated flow of 30 L/min.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryCheck Valves

Overview

Max. Operating Pressure: 315 bar
Rated flow: 30L/min
Internal Leakage: ≤0.3ml/min. Max. at 250 bar
Temperature: -35°C to +120°C
Recommended Filtration: Critical Application: ISO17/15/13
Non-Critical Application: ISO20/18/14
Fluids: Mineral based fluid for other fluid compatibility consult factory
Body Material: Anodized 6061T6 aluminium ally rated at 207 bar

Key highlights

  1. Max. Operating Pressure: 315 bar
  2. Rated flow: 30 L/min
  3. Internal Leakage: ≤0.3ml/min. Max. at 250 bar
  4. Temperature: -35°C to +120°C
  5. Body Material: Anodized 6061T6 aluminium ally rated at 207 bar
  6. Recommended Filtration: Critical Application: ISO17/15/13; Non-Critical Application: ISO20/18/14

Details

Please contact us for the full technical data sheet of this product.
