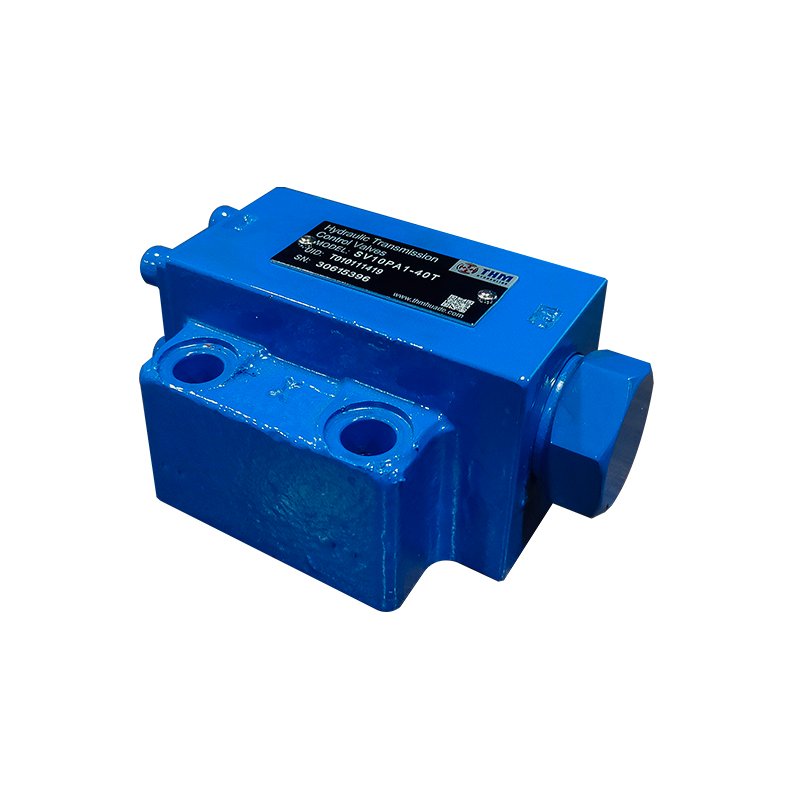

THM – SV & SL – Check Valves

Pilot operated check valves in sizes 10 and 20 with maximum pressure up to 315 bar and maximum flow up to 350 l/min. They are fluid-controlled check valves available with or without pre-opening and with subplate or screw-threaded connection.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryCheck Valves
ModelTHM SL-20-PA2-42 (SAMPLE ONLY)THM SL10PA1- 40TTHM SL10PA2- 40TTHM SL20PA1- 40TTHM SL20PA2- 40TTHM SL30PA2-S40THM SV-08-2.NO.P-N-D2-L5THM SV-08-2NOP-DC24THM SV-10-PA2-42 (SAMPLE ONLY)THM SV-12-D2-NC-P-L5THM SV-12-R2-NC-P-L7THM SV-16-D2-NC-P-L5THM SV-16-R2-NC-P-L7THM SV10PA1-40TTHM SV20PA1-40TTHM SV20PA2-40TTHM SV6-08-2NCP-DC24

Overview

Pilot Operated Check Valves
Sizes 10, 20
Max pressure up to 315 bar
Max flow up to 350 l/min

Key highlights

  1. Sizes 10, 20
  2. Max pressure up to 315 bar
  3. Max flow up to 350 l/min
  4. With or without pre-opening
  5. Subplate or screw-threaded connection
  6. Porting pattern to DIN 24 340 forms A, ISO 4401 and CETOP-RP 121H

Product details

Features:

  • With or without pre-opening
  • Subplate or screw-threaded connection
  • Check valve controlled by fluid
  • For subplate mounting, Mounting pattern to DIN 24 340
  • With or without leakage port
  • Type with pre-opening, dampened decompression
  • 4 opening pressures
  • Porting pattern to Din 24 340 forms A, ISO 4401 and CETOP-RP 121H
