Z2FS016
THM

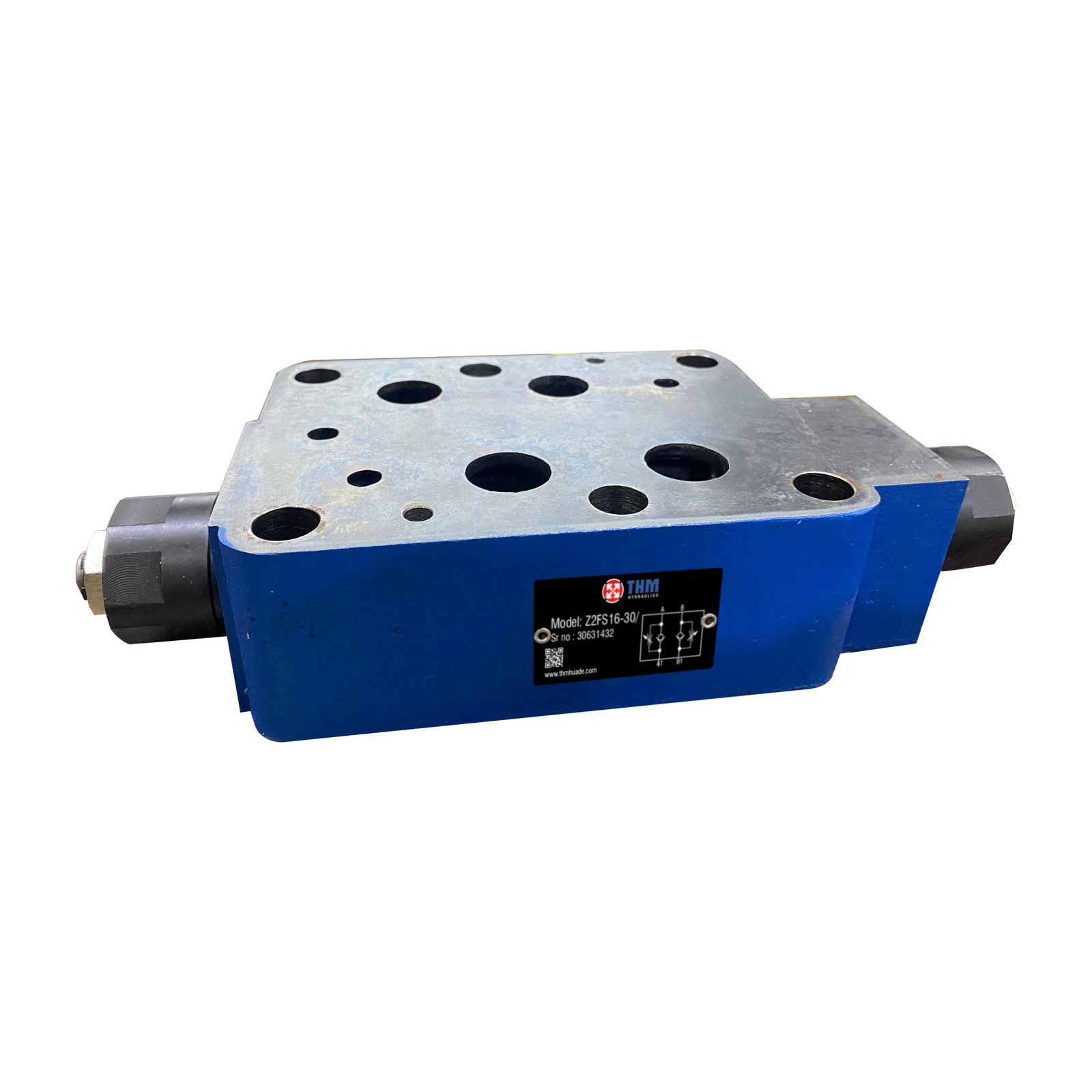

THM – Z2FS16, 22 – Check valves

The THM Z2FS16, 22 is a double throttle/check valve available in sizes 16 and 22. It is a sandwich plate valve used for limiting the main or control fluid flow of two actuator connections.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryCheck Valves
ModelTHM Z2FS16-30B/STHM Z2FS16-30B/S2THM Z2FS22-30B/STHM Z2FS22-30B/S2

Overview

Double throttle/ Check valve
Size 16, 22
Max pressure up to 350 bar
Max. Flow up to 360 L/min

Key highlights

  1. Double throttle/check valve
  2. Sizes 16 and 22
  3. Max pressure up to 350 bar
  4. Max flow up to 360 L/min
  5. Sandwich plate valve
  6. Porting pattern to DIN 24 340 form A and ISO4401

Product details

Features:

  • Sandwich plate valve
  • Porting pattern to DIN 24 340 form A and ISO4401
  • For limiting the main or control Fluid Flow of 2 actuator connections
  • 3 adjustment elements:
    – Lockable rotary knob with scale
    – Spindle with internal hexagon and scale
    – Rotary knob with scale
  • For meter-in or meter-out control
