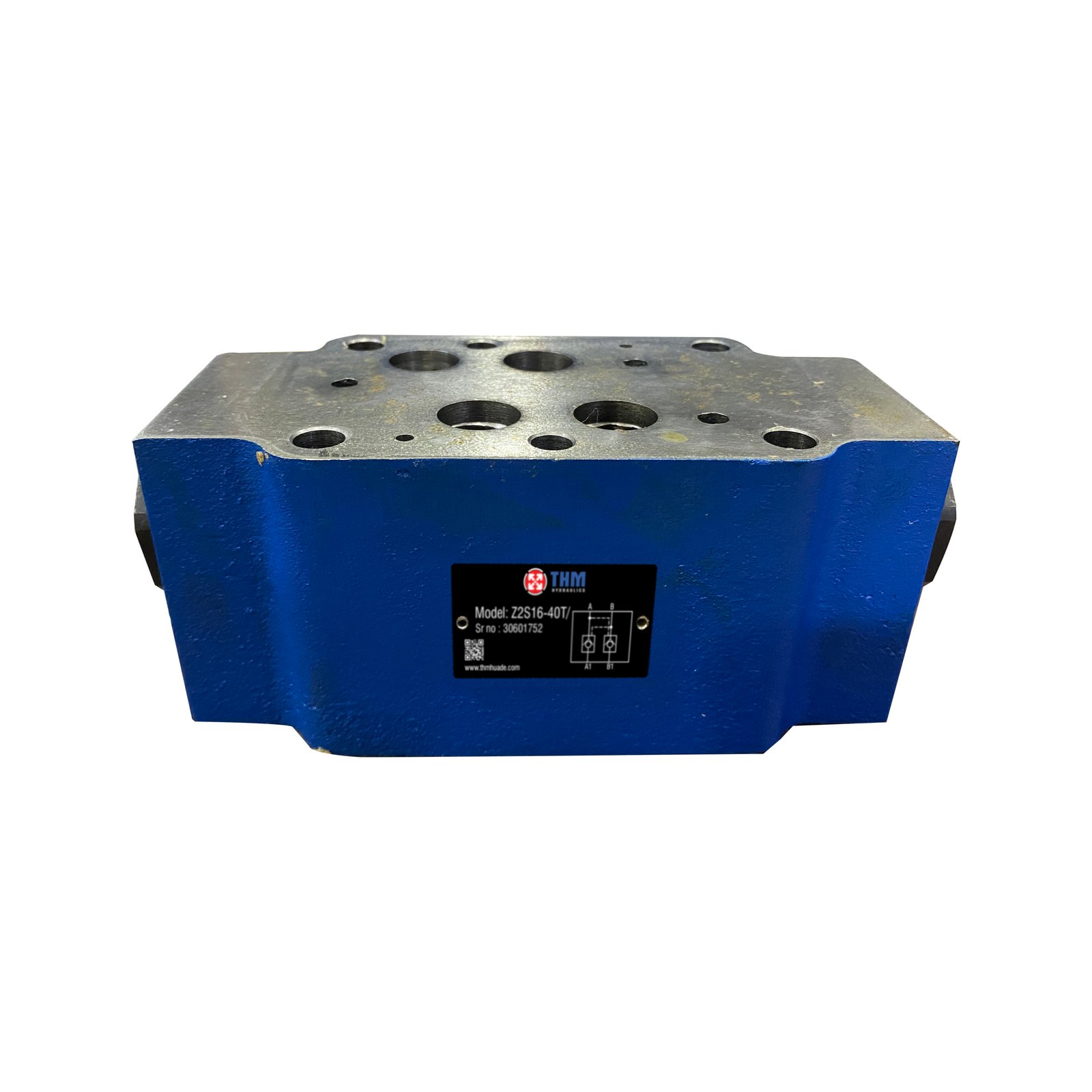

Z2S16-Check valve
THM

THM – Z2S6, 10, 16, 22 – Check valves

THM Z2S6, 10, 16, 22 pilot-operated check valves offer leakage-free closure for one or two ports in sandwich plate design.

Enquire now WhatsApp Call
Download product brochure

Specifications

BrandTHM
CategoryCheck Valves
ModelTHM Z2S16-1-50T

Overview

Check valve pilot operated
Size 16, 22
Max pressure up to 315 bar
Max. Flow up to 300 L/min

Key highlights

  1. Pilot operated check valve
  2. Porting pattern confirms to DIN 24 340
  3. Leakage-free closure for one or two ports
  4. Sandwich plate valve for vertical stacking assemblies
  5. 4 cracking pressures, optional
  6. Max pressure up to 315 bar; Max flow up to 300 L/min

Product details

Features:

  • Porting pattern confirms to DIN 24 340
  • Leakage-free closure for one or two ports
  • Sandwich plate valve, for use in vertical stacking assemblies
  • 4 cracking pressures, optional
